CTS-40 (tube seal)
CTS-40 (tube seal), Cable Assemblers Subcomponents, Tube Seal 1/4-28, M5 and M6 Nominal Size
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.00 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 40 Series (1/4-28, M5 & M6 cables) |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.00 |
| 2+ | $3.50 |
| 3+ | $2.67 |
| 4+ | $2.25 |
| 5+ | $2.00 |
| 10+ | $1.48 |
| 20+ | $0.93 |
| 30+ | $0.85 |
| 50+ | $0.71 |
| 100+ | $0.51 |
| 250+ | $0.44 |
| 500+ | $0.33 |
| 1,000+ | $0.30 |
| 2,000+ | $0.27 |
| 3,000+ | $0.27 |
| 6,000+ | $0.23 |

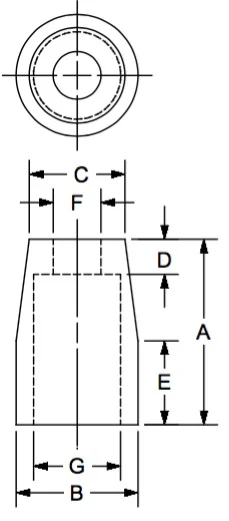

Drawing dimensions
| Nominal | 40 Series (1/4-28, M5 & M6 cables) |
|---|---|
| A | 0.85 |
| B | 0.574 |
| C | 0.437 |
| D | 0.180 |
| E | 0.375 |
| F | 0.270 |
| G | 0.418 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: rubber
Color: black
Typical Application: push-pull control cables.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More cable assemblers subcomponents
Compare specifications and drawings to select the right part.
