MCPEye Rod Ends · Female
DiE-3

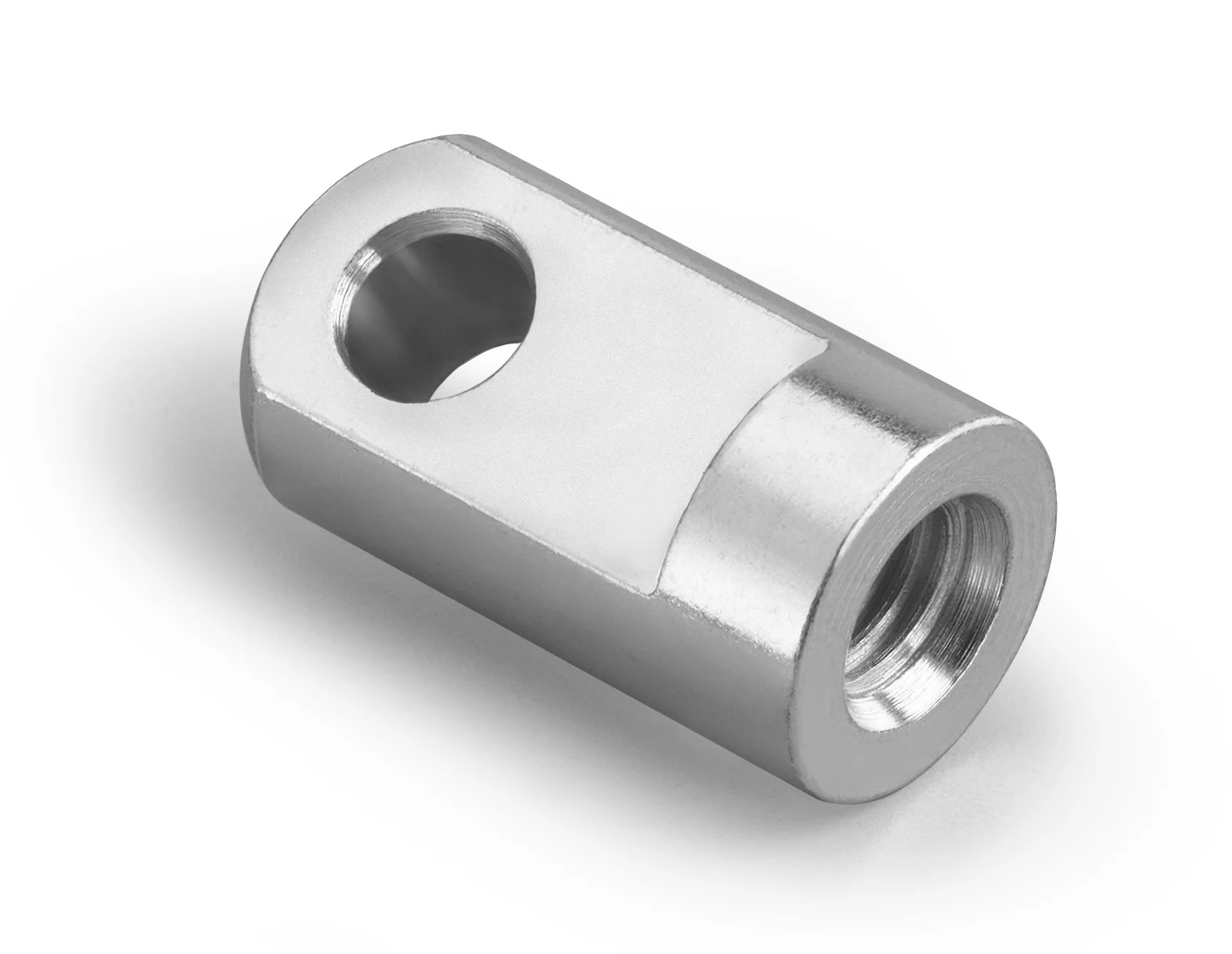

DiE-3, Eye Rod Ends, Female 10-32 RH 8.0 mm dia Pin Hole 5.75 mm wide
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.09 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.09 |
| 2+ | $10.90 |
| 3+ | $9.25 |
| 4+ | $8.83 |
| 5+ | $7.55 |
| 10+ | $6.24 |
| 25+ | $4.19 |
| 50+ | $3.68 |
| 75+ | $3.65 |
| 100+ | $3.63 |

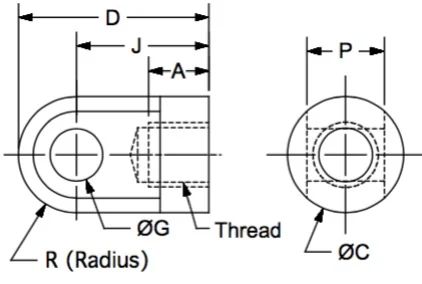

Drawing dimensions
| Threads | 10-32 RH |
|---|---|
| A | 10 |
| C | 16 |
| D | 40 |
| G | 8.0 |
| J | 30.4 |
| P | 5.75 |
| R | square |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Valve Rod Ends are typically assembled to the end of a control rod linkage or to a push-pull cable to actuate a female hydraulic valve spool.
Construction: Machined from low carbon steel.
Plating: Zinc Plated
