MCPEye Rod Ends · Female
FE250
FE250, Eye Rod Ends, Female 1/4-28 RH 0.251 Bore 4130 Chrome Moly Steel, Heat Treated
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.04 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Bore diameter | 0.251 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.04 |
| 2+ | $10.86 |
| 3+ | $9.22 |
| 4+ | $8.80 |
| 5+ | $7.53 |
| 10+ | $6.21 |
| 25+ | $4.18 |
| 50+ | $3.67 |
| 100+ | $3.62 |

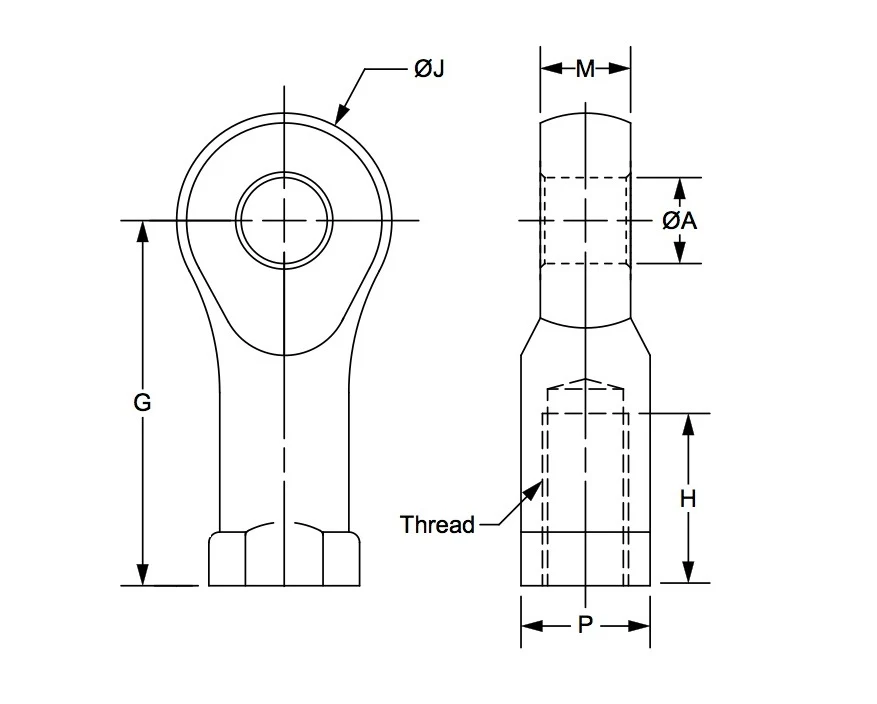

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 0.251 |
| G | 1.312 |
| H | 0.750 |
| J | 0.625 |
| M | 0.262 |
| P | 0.375 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 4130 Heat Treated Chrome Moly Steel
Finish: Chrome Plated
Feature: Solid Rod Eye
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
