MCPEye Rod Ends · Female
GMN-6
GMN-6, Eye Rod Ends, Female M6 x 1.00 RH 6.10 mm Bore 16.0 mm base to center of eye Plated Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M6 x 1 RH |
|---|---|
| Bore diameter | 6.1 mm |
| Material | Plated Steel |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.21 |
| 2+ | $10.29 |
| 3+ | $8.70 |
| 4+ | $8.28 |
| 5+ | $8.03 |
| 10+ | $5.82 |
| 25+ | $5.05 |
| 50+ | $3.81 |
| 100+ | $3.38 |

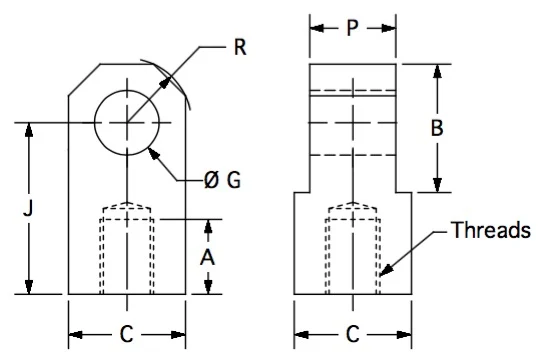

Drawing dimensions
| Threads | M6 x 1.00 RH |
|---|---|
| A | 6 |
| B | 9 |
| C | 10 |
| G | 6.1 |
| J | 16 |
| P | 6 |
| R | 10 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Midwest Control Products GMN eye rod ends are typically used as Gas Spring eye ends, or as part of a linkage going directly into a hydraulic valve spool.
Construction: plated steel
