MCPEye Rod Ends · Female
DV4F-1930

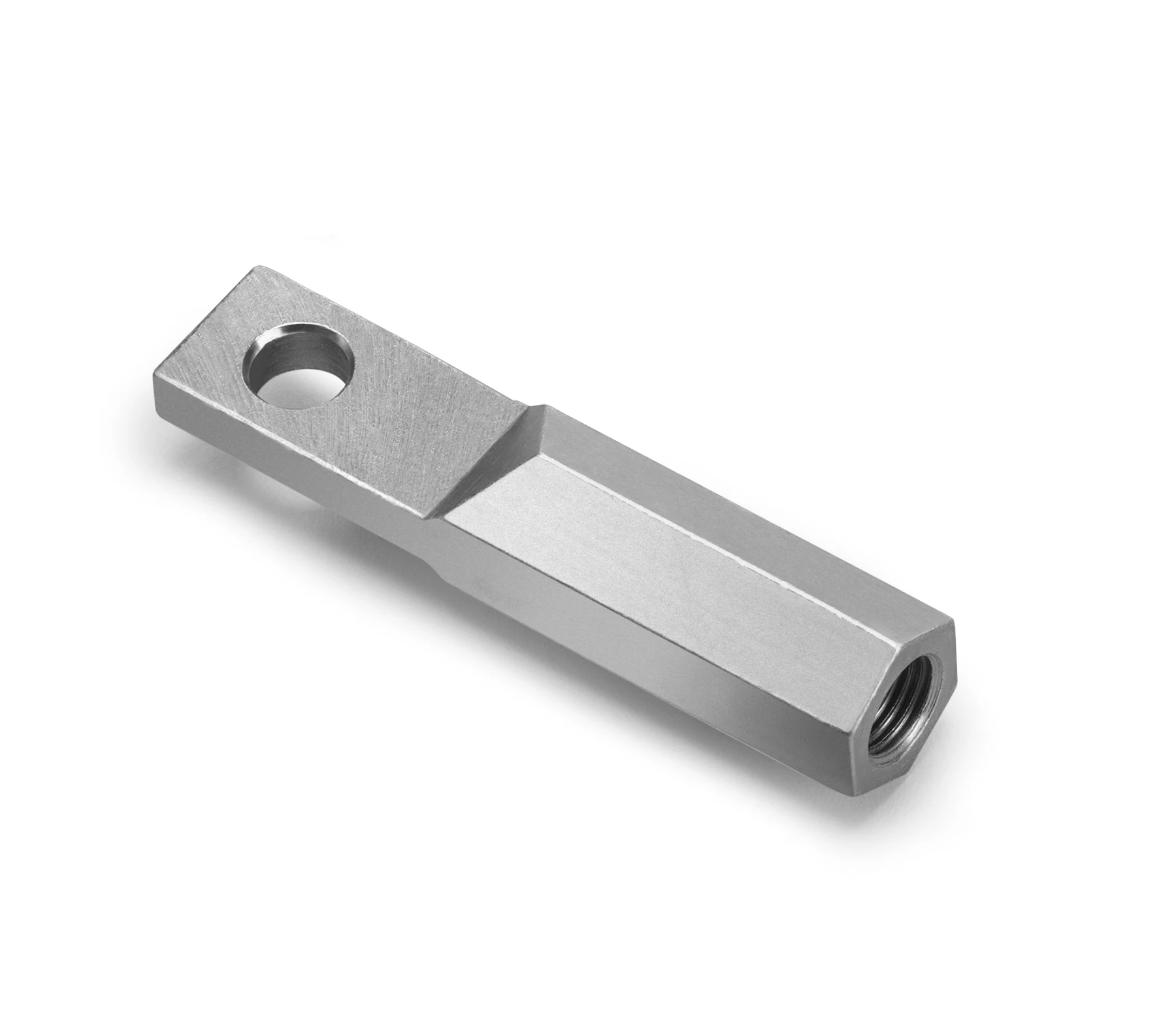

DV4F-1930, Eye Rod Ends, Female 1/4-28 RH 0.193 dia Pin Hole 0.250 wide

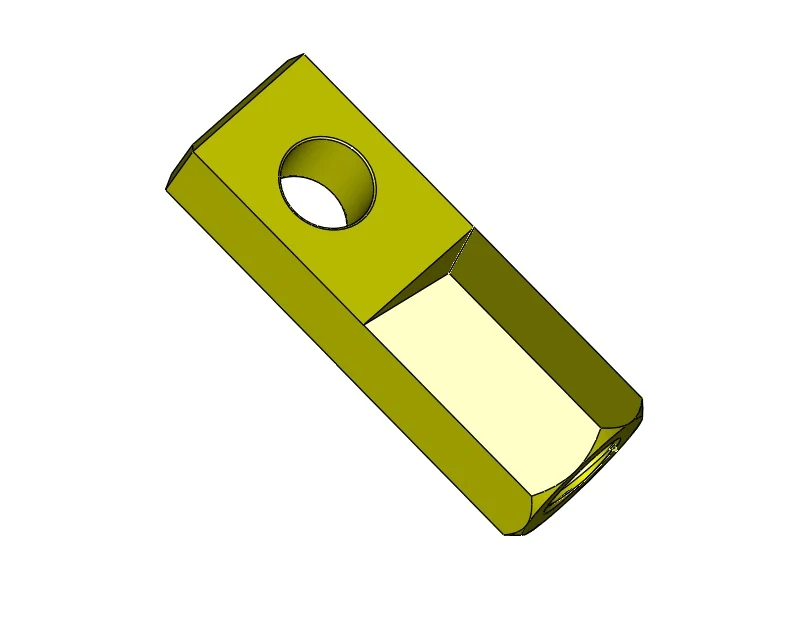

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$20.60 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|---|
| Material | 0.4375” Hex |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $20.60 |
| 2+ | $16.58 |
| 3+ | $13.84 |
| 4+ | $11.90 |
| 5+ | $11.65 |
| 10+ | $10.20 |
| 25+ | $7.62 |
| 50+ | $6.76 |
| 100+ | $6.14 |
| 250+ | $5.35 |
| 500+ | $4.57 |

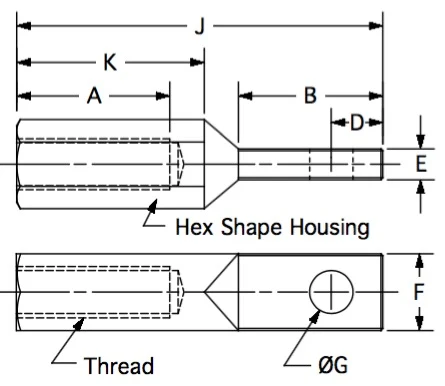

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| Material | 0.4375” Hex |
| A | 0.500 |
| B | 0.652 |
| D | 0.312 |
| E | 0.250 |
| F | 0.4375 |
| G | 0.1930 |
| J | 1.312 |
| K | 0.600 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Valve Rod Ends are typically assembled to the end of a control rod linkage or to a push-pull cable to actuate a female hydraulic valve spool.
Construction: Machined from low carbon steel.
Plating: Zinc Plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
