MCPEye Rod Ends · Female
FE375
FE375, Eye Rod Ends, Female 3/8-24 RH 0.376 Bore 4130 Chrome Moly Steel, Heat Treated

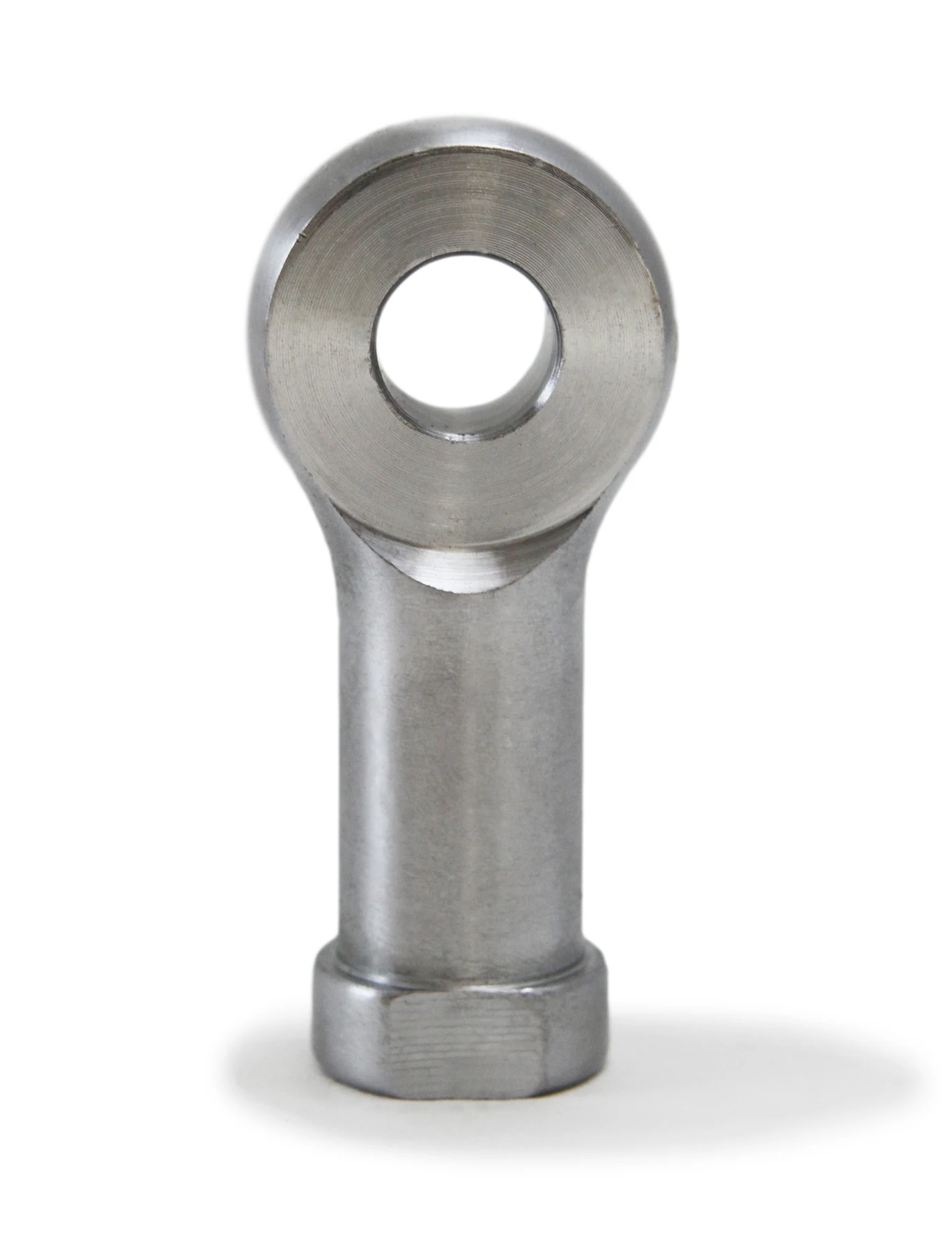

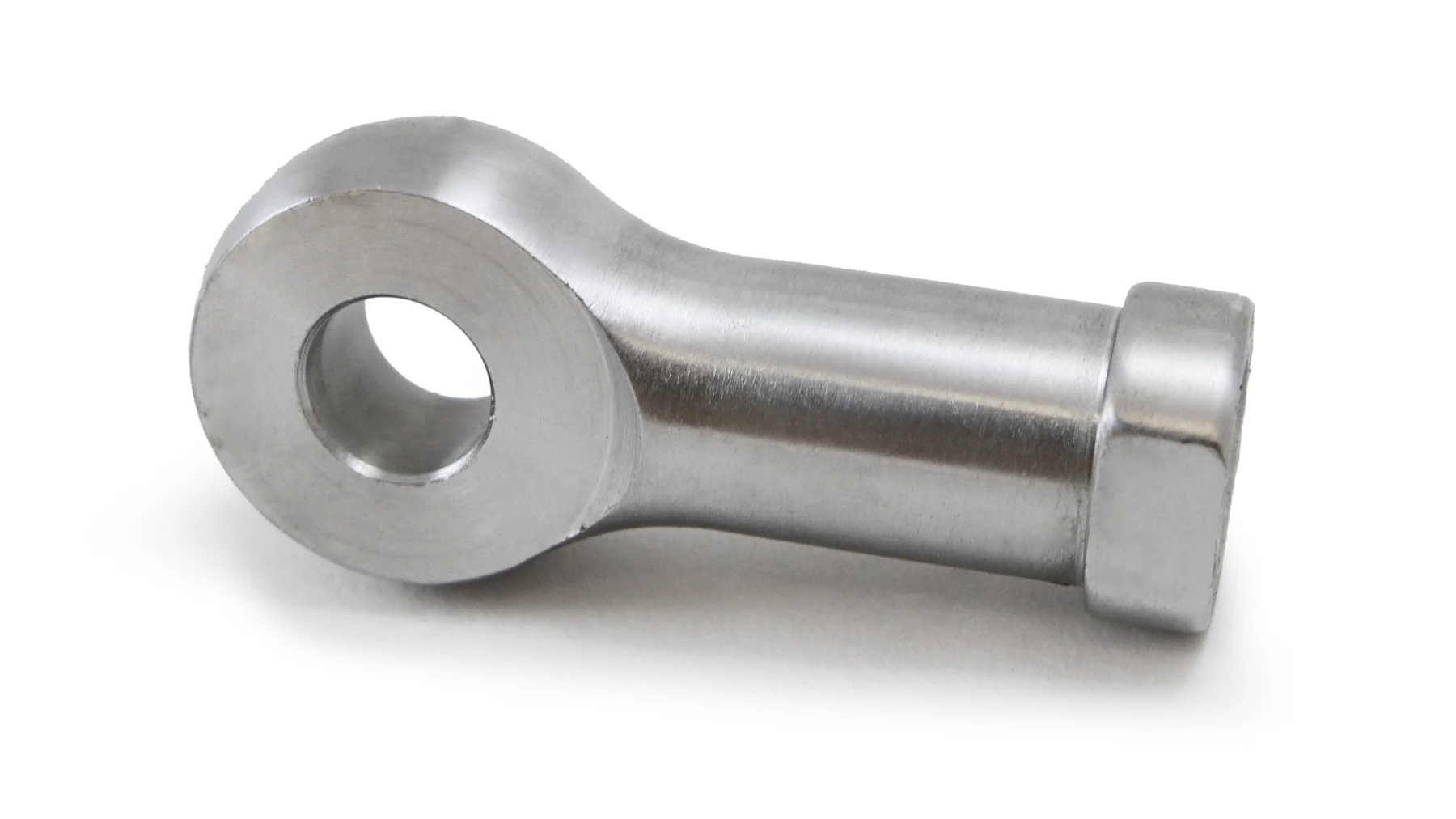

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.17 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 RH |
|---|---|
| Bore diameter | 0.376 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.17 |
| 2+ | $12.35 |
| 3+ | $10.55 |
| 4+ | $10.14 |
| 5+ | $8.69 |
| 10+ | $7.23 |
| 25+ | $4.89 |
| 50+ | $4.31 |
| 100+ | $4.26 |
| 250+ | $3.39 |
| 500+ | $2.90 |
| 1,000+ | $2.89 |

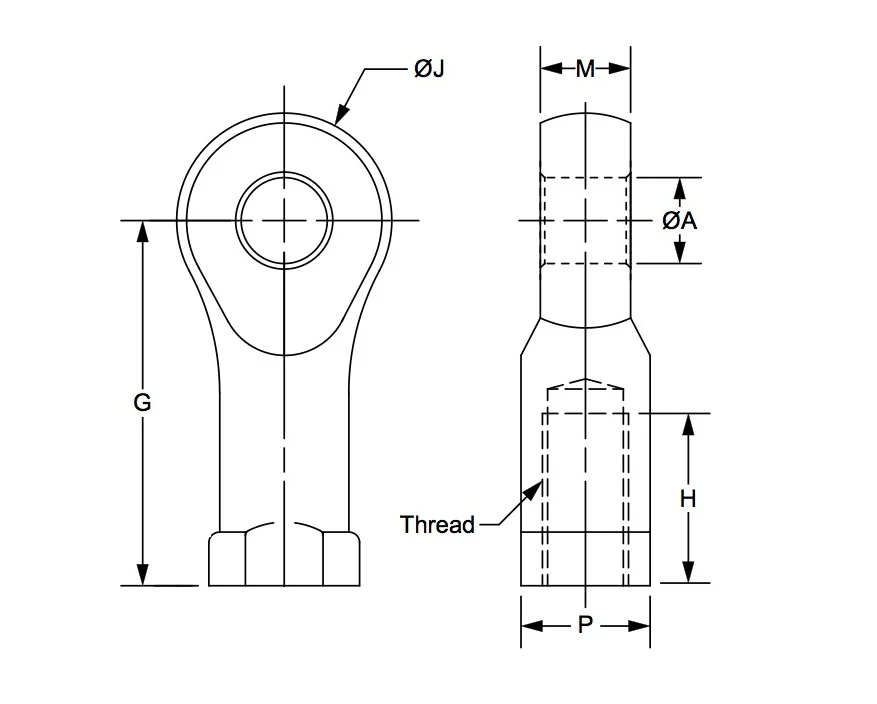

Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| A | .376 |
| G | 1.625 |
| H | .937 |
| J | .937 |
| M | .420 |
| O | .687 |
| P | .562 |
| T | .218 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 4130 Heat Treated Chrome Moly Steel
Finish: Chrome Plated
Feature: Solid Rod Eye
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
