MCPEye Rod Ends · Female
FE625

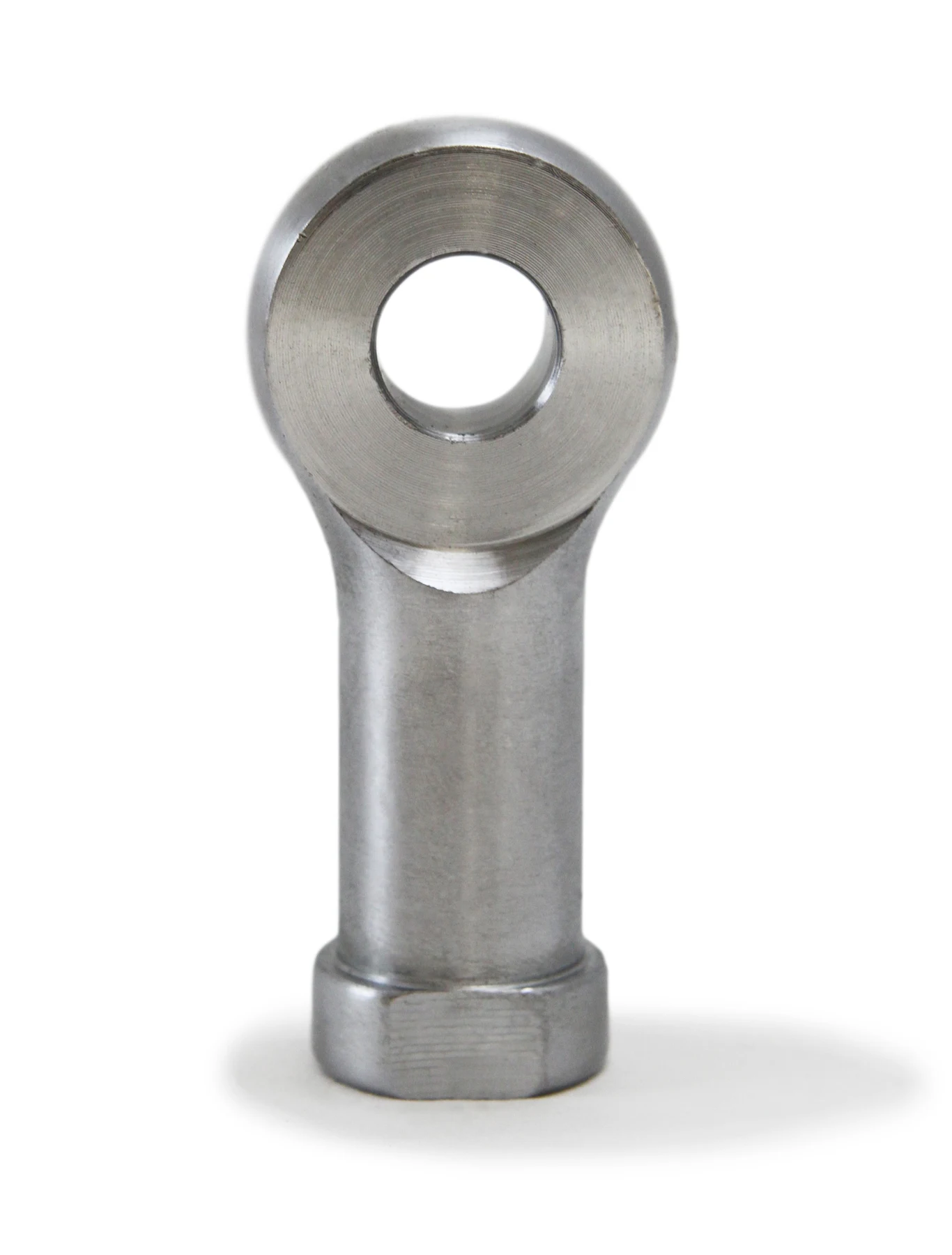

FE625, Eye Rod Ends, Female 5/8-18 RH 0.626 Bore 4130 Chrome Moly Steel, Heat Treated
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.47 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/8-18 RH |
|---|---|
| Bore diameter | 0.626 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.47 |
| 2+ | $14.66 |
| 3+ | $13.83 |
| 4+ | $11.77 |
| 8+ | $9.01 |
| 12+ | $8.80 |
| 16+ | $6.73 |
| 20+ | $6.67 |
| 40+ | $5.89 |
| 60+ | $5.84 |
| 80+ | $5.49 |
| 120+ | $5.31 |
| 160+ | $4.64 |
Drawing dimensions
| Threads | 5/8-18 RH |
|---|---|
| A | .626 |
| G | 2.500 |
| H | 1.500 |
| J | 1.460 |
| M | .665 |
| O | 1.000 |
| P | .875 |
| T | .312 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: 4130 Heat Treated Chrome Moly Steel
Finish: Chrome Plated
Feature: Solid Rod Eye
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
