MCPCable Assemblers Subcomponents · Grooved Conduit Fitting
GCE-M4
GCE-M4, Cable Assemblers Subcomponents, Grooved Conduit Fitting M4 Nominal Size

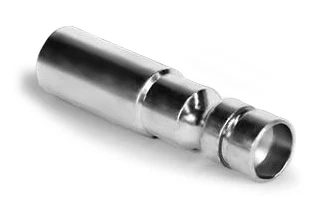

Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.18 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Internal thread | 3/8-16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.18 |
| 2+ | $4.68 |
| 3+ | $3.85 |
| 4+ | $3.43 |
| 5+ | $3.14 |
| 10+ | $1.99 |
| 25+ | $1.54 |
| 50+ | $1.12 |
| 100+ | $0.97 |
| 250+ | $0.73 |
| 500+ | $0.64 |
| 1,000+ | $0.59 |
| 2,500+ | $0.51 |

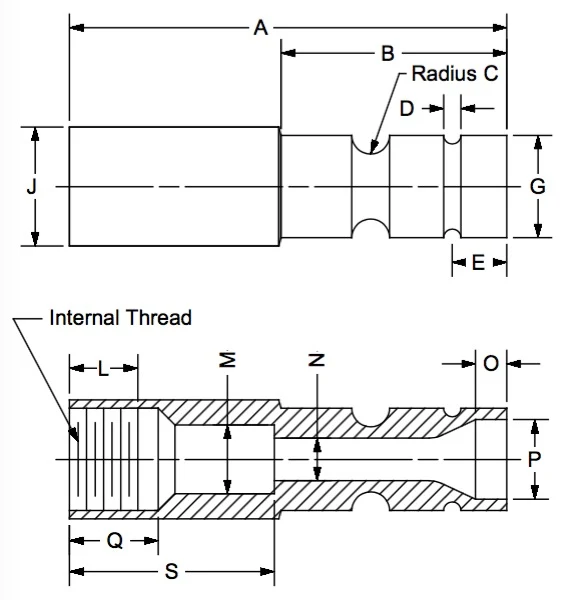

Drawing dimensions
| Internal Thread | 3/8-16 |
|---|---|
| A | 40.50 |
| B | 19.70 |
| C | N/A |
| D | 1.90 |
| E | 5.08 |
| G | 9.40 |
| J | 11.50 |
| L | 6.35 |
| M | 6.35 |
| N | 3.96 |
| O | 3.18 |
| P | 7.47 |
| Q | 8.13 |
| S | 19.05 |
Lettered dimensions refer to the drawing for this part.
