MCPEye Rod Ends · Female
GMN-8
GMN-8, Eye Rod Ends, Female M8 x 1.25 RH 8.1 mm Bore 19.0 mm base to center of eye Plated Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.60 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M8 x 1.25 RH |
|---|---|
| Bore diameter | 8.1 mm |
| Material | Plated Steel |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.60 |
| 2+ | $3.10 |
| 3+ | $2.27 |
| 4+ | $1.85 |
| 5+ | $1.60 |
| 10+ | $1.10 |
| 25+ | $0.61 |
| 50+ | $0.47 |
| 100+ | $0.37 |
| 250+ | $0.28 |

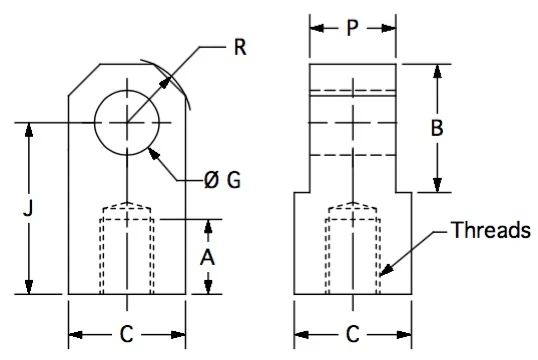

Drawing dimensions
| Threads | M8 x 1.25 RH |
|---|---|
| A | 5 |
| B | 13 |
| C | 15 |
| G | 8.1 |
| J | 19 |
| P | 10 |
| R | 15 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Midwest Control Products GMN eye rod ends are typically used as Gas Spring eye ends, or as part of a linkage going directly into a hydraulic valve spool.
Construction: plated steel
