MCPEye Rod Ends · Female
GMW-10

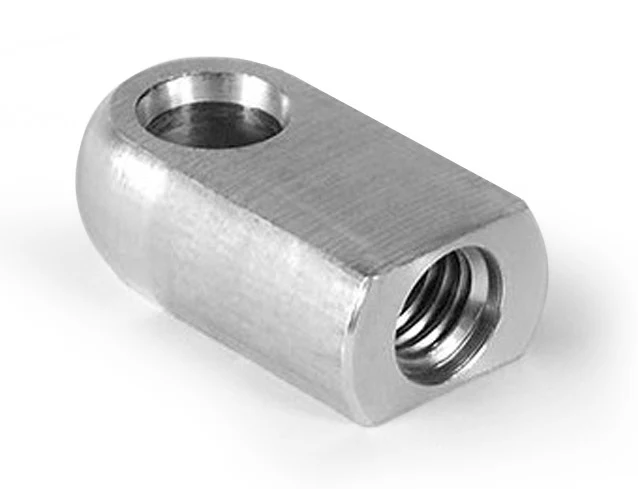

GMW-10, Eye Rod Ends, Female M10 x 1.25 RH 8.1 mm Bore 20.0 mm base to center of eye Plated Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.38 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M10 x 1.25 RH |
|---|---|
| Bore diameter | 8.1 mm |
| Material | Plated Steel |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.38 |
| 2+ | $5.88 |
| 3+ | $4.99 |
| 4+ | $4.57 |
| 5+ | $3.31 |
| 10+ | $2.58 |
| 25+ | $2.00 |
| 50+ | $1.54 |
| 100+ | $1.15 |

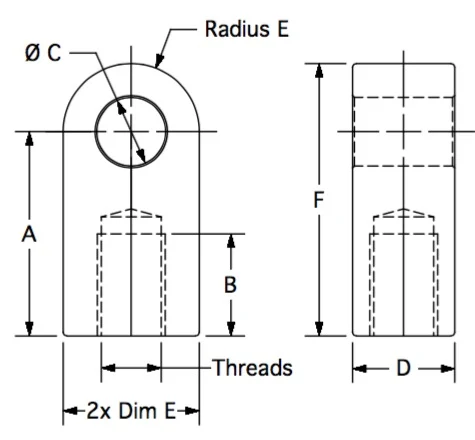

Drawing dimensions
| Threads | M10 x 1.25 RH |
|---|---|
| A | 20.0 |
| B | 14.0 |
| C | 8.1 |
| D | 12.0 |
| E | 8.0 |
| F | 28.0 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Midwest Control Products GMW eye rod ends are typically used as Gas Spring eye ends, or as part of a linkage going directly into a hydraulic valve spool.
Construction: plated steel
