Rod End Misalignment Inserts · fits 1.0 Rod End Bore

HMBSS-16-10

HMBSS-16-10, Rod End Misalignment Inserts, fits 1.0 Rod End Bore 5/8 Insert Bore Size Straight Style Stainless Steel

Product image
HMBSS-16-10 product image

$39.75 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

MaterialStainless steel

Values without units follow the drawing.

Drawing & dimensions

HMBSS-16-10 dimension drawing
MaterialStainless Steel
A0.9955
B1.048
C1.500
D1.474
E0.809
F1.2748
G0.6300
J0.090
K0.125
N0.6650
R10.938
R20.226
Fits1
Item envelope L × W × H (in)1.474 × 1.5 × 1.5
Unit weight (lb)0.26

Lettered dimensions refer to the drawing for this part.

Additional photos

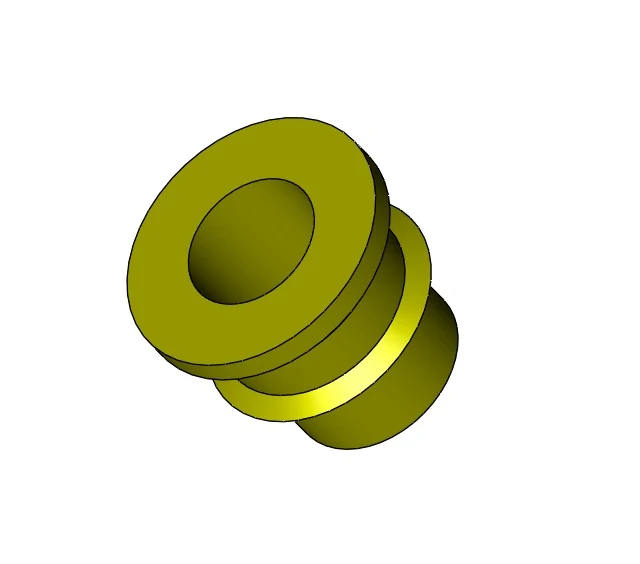

Additional product photo
HMBSS-16-10 additional product photo

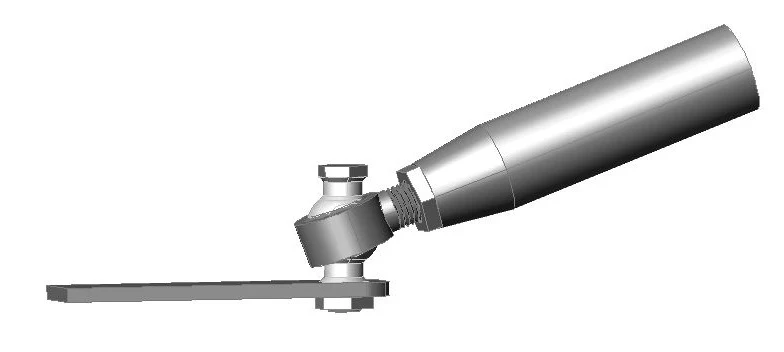

Additional product photo
HMBSS-16-10 additional product photo

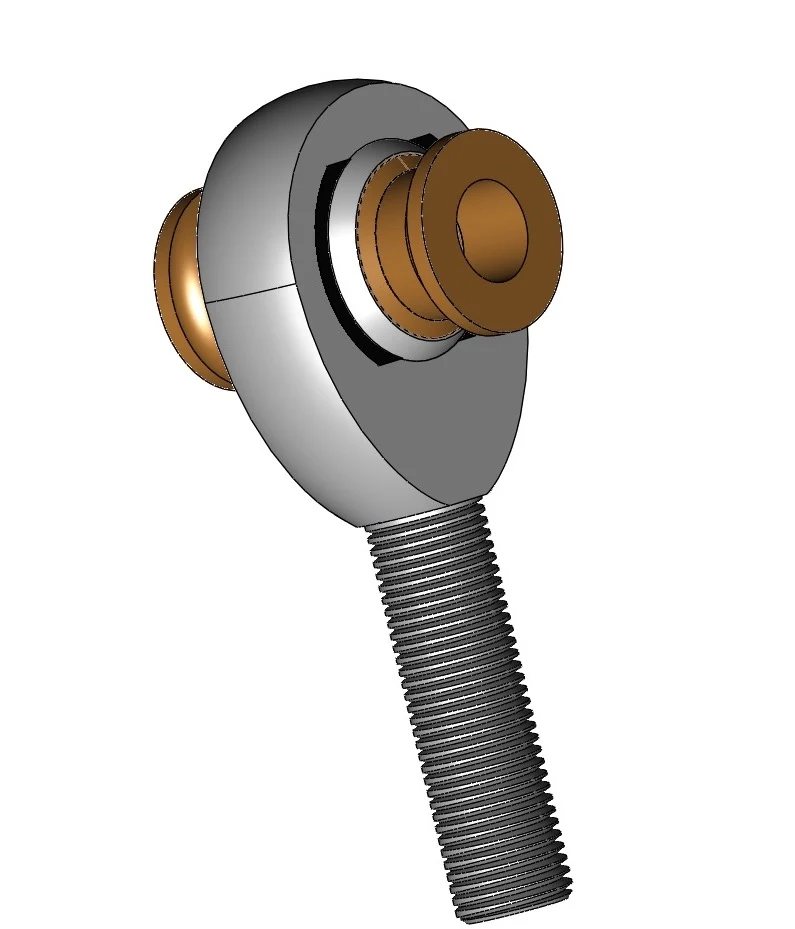

Additional product photo
HMBSS-16-10 additional product photo

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$39.75
2+$32.91
3+$29.36
4+$28.94
8+$21.81
24+$18.13
48+$15.32
72+$15.28
120+$13.08

Product information

Application: High Misalignment Inserts are used in conjunction with hex head cap screws (bolts) to increase the misalignment of the rod end. The insert keeps the head of the hex head cap screw (bolt) away from the rod end housing, thereby increasing the misalignment of the rod end. Alternatives: Most of our rod ends are available with 'factory installed' rod end bolts. Or, we also offer 'field installable' rod end studs.
