MCPHydraulic Hose End Fittings · Female ORFS Stem
HSF-FS-SW-T45S-06-06
HSF-FS-SW-T45S-06-06, Hydraulic Hose End Fittings, Female ORFS Stem 3/8 Stem, Female Swivel OFS, Bent Tube, 45° Short Drop, Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 11/16-16 |
| Fitting length | 2.75 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.79 |
| 2+ | $7.21 |
| 3+ | $6.37 |
| 4+ | $4.52 |
| 5+ | $4.27 |
| 10+ | $3.46 |
| 25+ | $2.44 |
| 50+ | $2.14 |
| 100+ | $1.61 |
| 250+ | $1.42 |
| 500+ | $1.29 |
| 1,000+ | $1.12 |

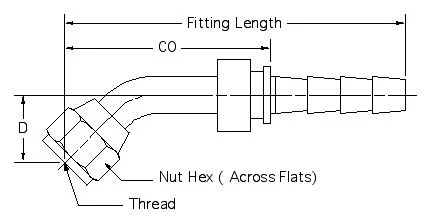

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 11/16-16 |
| Nut Hex | 13/16 |
| D Drop | .430 |
| Fitting Length | 2.750 |
| CO | 1.840 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
