HSF-FS-SW-T45S-08-10

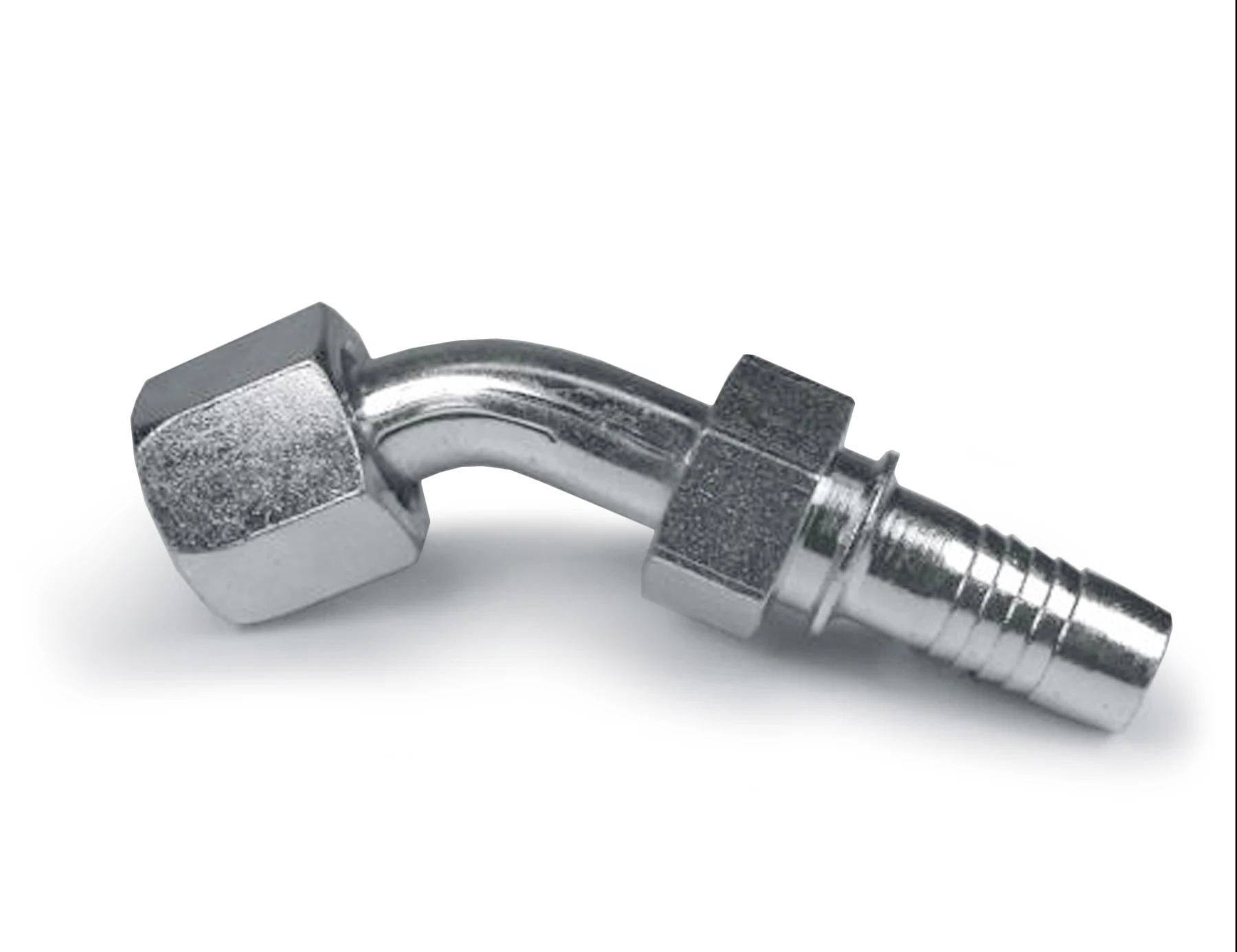

HSF-FS-SW-T45S-08-10, Hydraulic Hose End Fittings, Female ORFS Stem 1/2 Stem, Female Swivel OFS, Bent Tube, 45° Short Drop, Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.09 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/2 |
|---|---|
| Thread | 1-14 |
| Fitting length | 3.75 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.09 |
| 2+ | $10.91 |
| 3+ | $9.25 |
| 4+ | $8.84 |
| 5+ | $7.57 |
| 10+ | $6.25 |
| 25+ | $4.21 |
| 50+ | $3.70 |
| 100+ | $3.65 |
| 250+ | $2.90 |
| 500+ | $2.46 |
| 1,000+ | $2.46 |

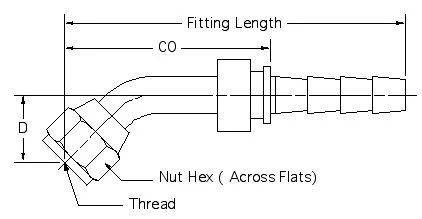

Drawing dimensions
| Hose ID | 1/2 |
|---|---|
| Thread | 1-14 |
| Nut Hex | 1-1/8 |
| D Drop | .650 |
| Fitting Length | 3.750 |
| CO | 2.590 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
