MCPHydraulic Hose End Fittings · Female Swivel ORFS Bent Stem
HSF-FS-SW-T90L-06-06
HSF-FS-SW-T90L-06-06, Hydraulic Hose End Fittings, Female Swivel ORFS Bent Stem Stem, Female Swivel OFS, Bent Tube, 90° Long Drop, Steel 3/8 2.875
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.97 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 11/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.97 |
| 2+ | $8.74 |
| 3+ | $7.91 |
| 4+ | $6.88 |
| 5+ | $6.63 |
| 10+ | $4.76 |
| 25+ | $4.08 |
| 50+ | $3.07 |
| 100+ | $2.72 |
| 250+ | $2.46 |
| 500+ | $2.14 |
| 1,000+ | $1.83 |

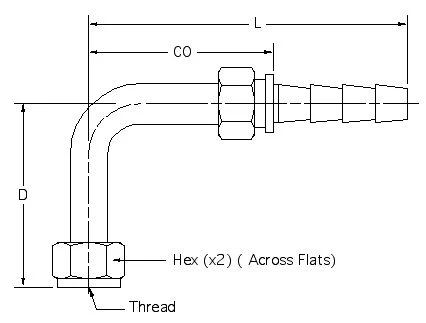

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 11/16-16 |
| Hex | 13/16 |
| D | 2.130 |
| L | 2.875 |
| CO | 1.965 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
