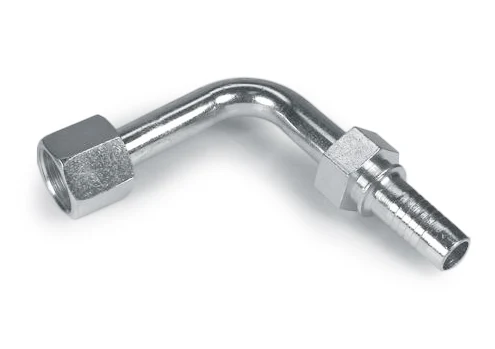

HSF-FS-SW-T90L-10-10
HSF-FS-SW-T90L-10-10, Hydraulic Hose End Fittings, Female Swivel ORFS Bent Stem Stem, Female Swivel OFS, Bent Tube, 90° Long Drop, Steel 5/8 3.730
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.30 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 5/8 |
|---|---|
| Thread | 1-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.30 |
| 2+ | $12.70 |
| 3+ | $11.87 |
| 4+ | $10.07 |
| 5+ | $9.82 |
| 10+ | $7.53 |
| 25+ | $5.58 |
| 50+ | $4.93 |
| 100+ | $4.61 |
| 250+ | $3.87 |
| 500+ | $3.31 |
| 1,000+ | $3.26 |

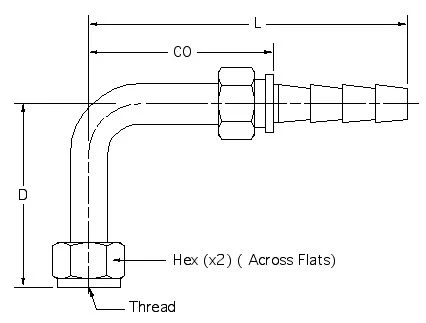

Drawing dimensions
| Hose ID | 5/8 |
|---|---|
| Thread | 1-14 |
| Hex | 1 1/8 |
| D | 2.750 |
| L | 3.730 |
| CO | 2.600 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
