HSF-JC-SW-06-04

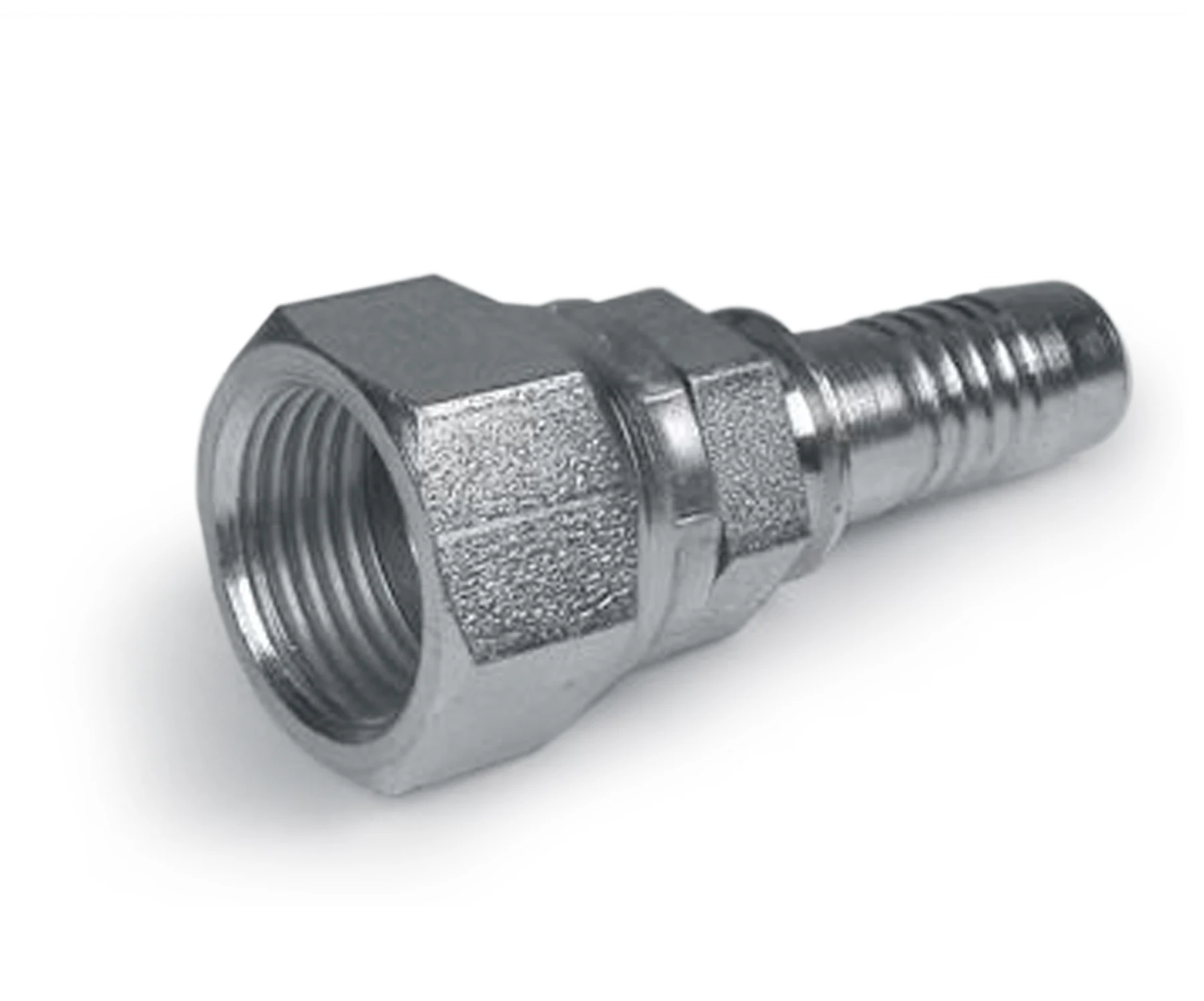

HSF-JC-SW-06-04, Hydraulic Hose End Fittings, JIC Female Stem 3/8 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.27 |
| 2+ | $7.68 |
| 3+ | $5.27 |
| 4+ | $4.85 |
| 5+ | $4.60 |
| 10+ | $3.75 |
| 25+ | $2.66 |
| 50+ | $2.34 |
| 100+ | $1.76 |

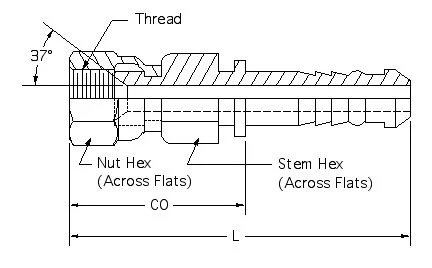

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 7/16-20 |
| Stem Hex | 11/16 |
| Nut Hex | 9/16 |
| Stem ID | .171 |
| L | 1.984 |
| CO | 1.074 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
Compatible with NRP Jones hydraulic hoses.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
