MCPHydraulic Hose End Fittings · JIC Female Stem
HSF-JC-SW-06-06
HSF-JC-SW-06-06, Hydraulic Hose End Fittings, JIC Female Stem 3/8 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.06 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.06 |
| 2+ | $3.56 |
| 3+ | $2.72 |
| 4+ | $2.31 |
| 5+ | $2.06 |
| 10+ | $1.55 |
| 25+ | $0.93 |
| 50+ | $0.76 |
| 100+ | $0.55 |

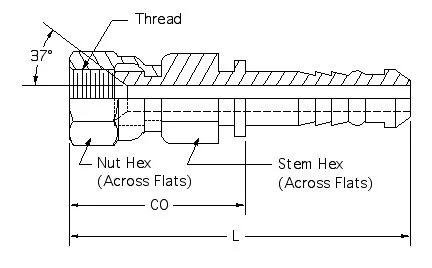

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 9/16-18 |
| Stem Hex | 11/16 |
| Nut Hex | 3/4 |
| Stem ID | .296 |
| L | 2.030 |
| CO | 1.105 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
Compatible with NRP Jones hydraulic hoses.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic hose end fittings
Compare specifications and drawings to select the right part.
