MCPHydraulic Hose End Fittings · Female JIC Bent Stem
HSF-JC-SW-T90L-06-06
HSF-JC-SW-T90L-06-06, Hydraulic Hose End Fittings, Female JIC Bent Stem 3/8 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$15.00 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 9/16-18 |
| Fitting length | 2.575 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $15.00 |
| 2+ | $9.45 |
| 3+ | $7.93 |
| 4+ | $7.52 |
| 5+ | $7.27 |

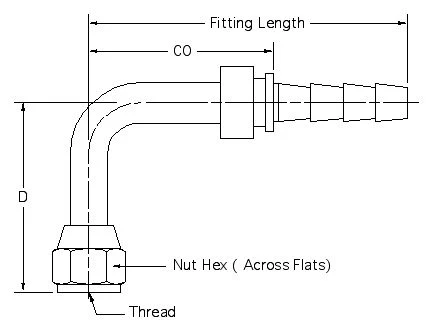

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 9/16-18 |
| Hex | 11/16 |
| D | 2.180 |
| Fitting Length | 2.575 |
| CO | 1.665 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
Compatible with NRP Jones hydraulic hoses
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic hose end fittings
Compare specifications and drawings to select the right part.
