MCPHydraulic Hose End Fittings · Female JIC Bent Stem
HSF-JC-SW-T90L-08-08
HSF-JC-SW-T90L-08-08, Hydraulic Hose End Fittings, Female JIC Bent Stem 1/2 3/4-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.50 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/2 |
|---|---|
| Thread | 3/4-16 |
| Fitting length | 2.983 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.50 |
| 2+ | $11.19 |
| 3+ | $9.51 |
| 4+ | $9.09 |
| 5+ | $7.78 |

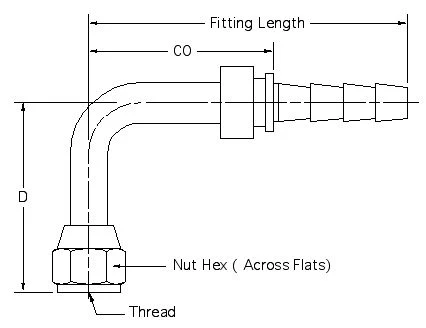

Drawing dimensions
| Hose ID | 1/2 |
|---|---|
| Thread | 3/4-16 |
| Hex | 7/8 |
| D | 2.430 |
| Fitting Length | 2.983 |
| CO | 1.823 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
Compatible with NRP Jones hydraulic hoses
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
