HSF-SA-SW-04-04

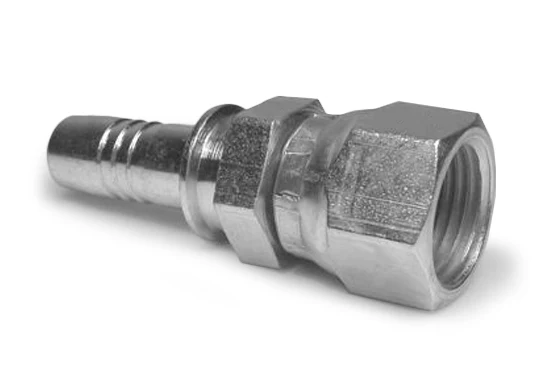

HSF-SA-SW-04-04, Hydraulic Hose End Fittings, Male SAE Swivel Stem Stem, Female Swivel SAE 45°, Steel 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.67 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/4 |
|---|---|
| Thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.67 |
| 2+ | $5.17 |
| 3+ | $4.34 |
| 4+ | $3.88 |
| 5+ | $3.63 |
| 10+ | $2.32 |
| 25+ | $1.62 |
| 50+ | $1.35 |
| 100+ | $1.18 |
| 250+ | $0.80 |
| 500+ | $0.79 |
| 1,000+ | $0.72 |

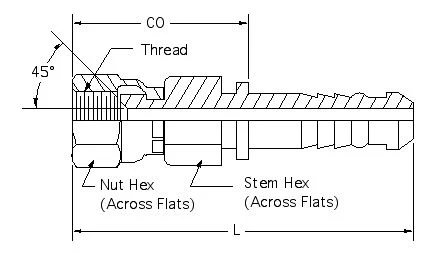

Drawing dimensions
| Hose ID | 1/4 |
|---|---|
| Thread | 7/16-20 |
| Stem Hex | 5/8 |
| Nut Hex | 9/16 |
| L | 1.995 |
| CO | 1.075 |
| Stem ID | .156 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
