HSF-SA-SW-05-06
HSF-SA-SW-05-06, Hydraulic Hose End Fittings, Male SAE Swivel Stem Stem, Female Swivel SAE 45°, Steel 5/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.42 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 5/16 |
|---|---|
| Thread | 5/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.42 |
| 2+ | $6.92 |
| 3+ | $6.02 |
| 4+ | $4.27 |
| 5+ | $4.02 |
| 10+ | $3.23 |
| 25+ | $2.26 |
| 50+ | $1.98 |
| 100+ | $1.49 |
| 250+ | $1.31 |
| 500+ | $1.19 |
| 1,000+ | $1.04 |

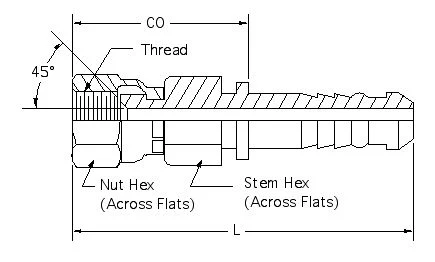

Drawing dimensions
| Hose ID | 5/16 |
|---|---|
| Thread | 5/8-18 |
| Stem Hex | 5/8 |
| Nut Hex | 3/4 |
| L | 2.115 |
| CO | 1.205 |
| Stem ID | .234 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
