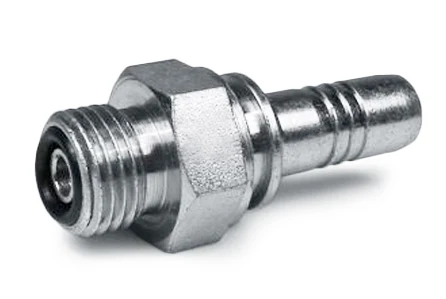

HSM-FS-SL-10-08
HSM-FS-SL-10-08, Hydraulic Hose End Fittings, Male ORFS Stem Stem, Male Solid OFS, Steel 5/8
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.09 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 5/8 |
|---|---|
| Thread | 13/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.09 |
| 2+ | $10.91 |
| 3+ | $9.26 |
| 4+ | $8.84 |
| 5+ | $7.56 |
| 10+ | $6.24 |
| 25+ | $4.20 |
| 50+ | $3.69 |
| 100+ | $3.64 |
| 250+ | $2.90 |
| 500+ | $2.47 |
| 1,000+ | $2.47 |

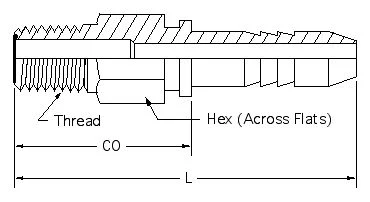

Drawing dimensions
| Hose ID | 5/8 |
|---|---|
| Thread | 13/16-16 |
| Hex | 1 1/16 |
| L | 2.257 |
| CO | 1.097 |
| Stem ID | .482 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
