MCPHydraulic Hose End Fittings · JIC Male Stem
HSM-JC-SL-12-12
HSM-JC-SL-12-12, Hydraulic Hose End Fittings, JIC Male Stem 3/4 JIC
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/4 |
|---|---|
| Thread | 1-1/16 - 12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.20 |
| 2+ | $4.70 |
| 3+ | $3.87 |
| 4+ | $3.45 |
| 5+ | $3.17 |
| 10+ | $2.01 |
| 25+ | $1.56 |
| 50+ | $1.13 |
| 100+ | $0.99 |
| 250+ | $0.74 |
| 500+ | $0.65 |
| 1,000+ | $0.60 |

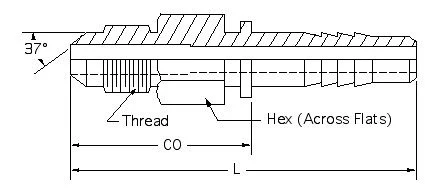

Drawing dimensions
| Hose ID | 3/4 |
|---|---|
| Thread | 1-1/16 - 12 |
| Hex | 1-1/8 |
| Stem ID | .625 |
| L | 2.793 |
| CO | 1.543 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
