MCPEye Rod Ends · Female
MAE-8
MAE-8, Eye Rod Ends, Female 1/2-20 RH with 0.500 Pin Hole Forged Housing Construction

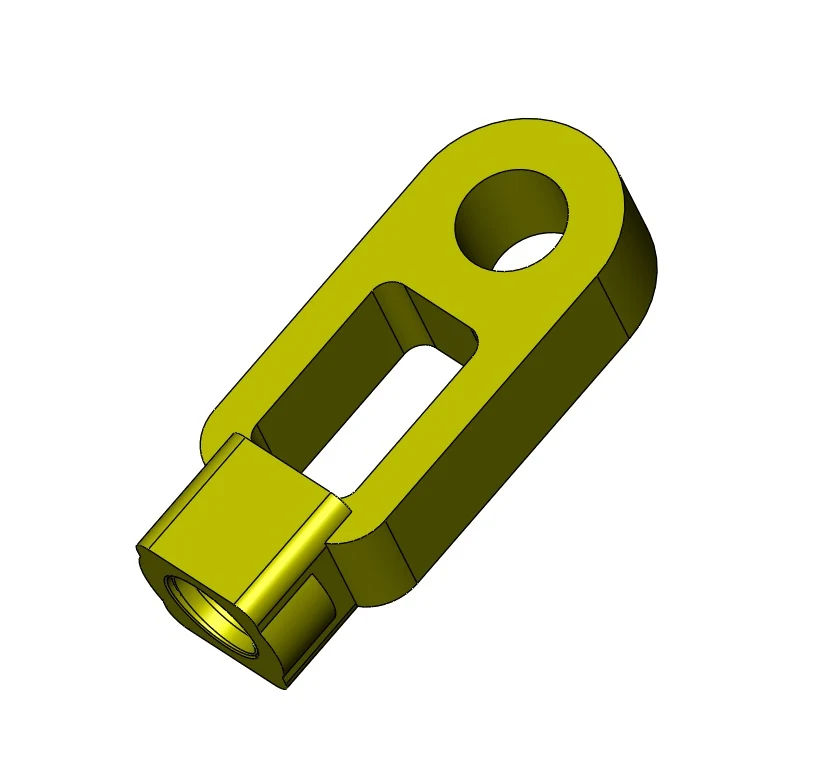

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.02 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.02 |
| 2+ | $2.52 |
| 3+ | $1.69 |
| 4+ | $1.27 |
| 5+ | $1.02 |
| 10+ | $0.52 |
| 30+ | $0.19 |
| 70+ | $0.09 |
| 140+ | $0.06 |
| 210+ | $0.05 |
| 280+ | $0.04 |

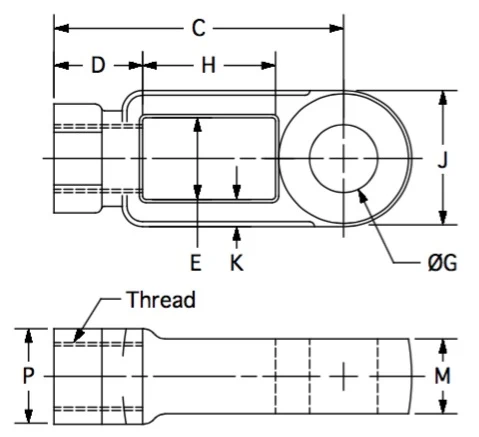

Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| Plating | Zinc Yellow |
| C | 2.125 |
| D | 0.688 |
| E | 0.624 |
| G | 0.500 |
| H | 0.937 |
| J | 1.000 |
| K | 0.188 |
| M | 0.563 |
| P | 0.750 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Adjustable Eye Ends are used to create a mounting point in a linkage system.
Construction: Adjustable Eye Ends are forged or cast from low carbon steel, and are then machined to the above specifications.
Plating: Adjustable Eye Ends are plated zinc with a yellow dichromate finish.
Specials: Special housing sizes and configurations are available in volume.
Thread and Clevis Pin Sizes: left hand threads, metric threads, smaller thread sizes (ie: 1/4-28" in the MAE-6 housing), and special clevis pin hole ("G" dimension) sizes are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More eye rod ends
Compare specifications and drawings to select the right part.
