Boots, Rubber · 5/8

RB-10

RB-10, Boots, Rubber, 5/8 for Male Rod Ends Fits High Misalignment Inserts

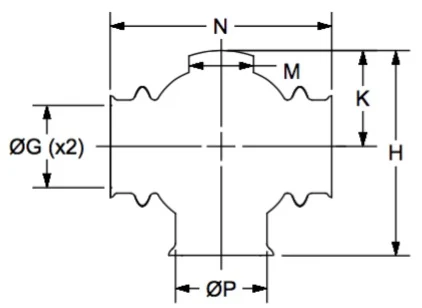

RB-10 dimension drawing 1 — Dimension drawing 1

Additional photos

RB-10 additional product photo — Additional product photo

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$15.33 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Fits rod end	MXM-10 with HMBZC-10-8 inserts

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

Quantity	Price per piece
1+	$15.33
2+	$9.68
3+	$8.15
4+	$7.73
20+	$4.71
50+	$3.51
100+	$3.11
150+	$2.92
300+	$2.47
500+	$2.46
600+	$2.11

Drawing dimensions

Fits Rod End	MXM-10 with HMBZC-10-8 inserts
G	0.570
H	1.625
K	0.750
M	0.484
N	1.860
P	0.595

Lettered dimensions refer to the drawing for this part.

Product information

Material: Neoprene Rubber resistant to water, petroleum-based oils, greases and chemical compounds. Application: Design intended for use on male spherical rod ends already fitted with a flared ball, trunion ball, or high misalignment inserts.
