MCPBoots, Rubber · 5/8
RMS-10

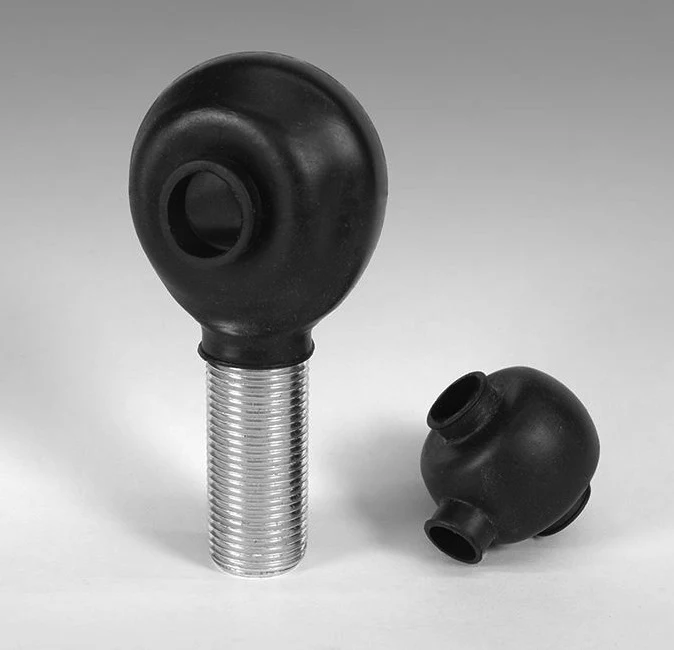

RMS-10, Boots, Rubber, 5/8 for Male Rod Ends Studded Rod End
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.69 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 5/8 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.69 |
| 2+ | $8.09 |
| 3+ | $5.56 |
| 4+ | $5.14 |
| 8+ | $4.14 |
| 12+ | $3.45 |
| 20+ | $2.90 |
| 40+ | $2.55 |
| 60+ | $1.93 |
| 100+ | $1.90 |
| 200+ | $1.69 |
| 500+ | $1.53 |
| 1,000+ | $1.34 |
| 1,500+ | $1.14 |
| 2,000+ | $1.14 |

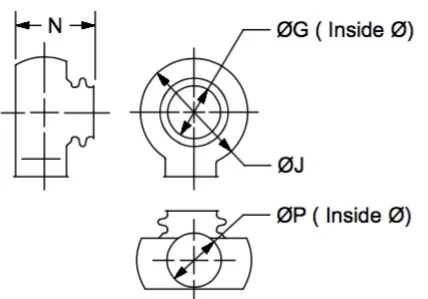

Drawing dimensions
| Nominal Size | 5/8 |
|---|---|
| G | 0.675 |
| J | 1.625 |
| N | 1.083 |
| P | 0.605 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Neoprene Rubber resistant to water, petroleum-based oils, greases and chemical compounds.
Application: Design intended for use on male studded rod ends.
Comment: These boots are reasonably priced, but we feel they are somewhat difficult to assemble. We encourage serious customers to request a sample prior to ordering to make sure you are satisfied with the means of assembly.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
