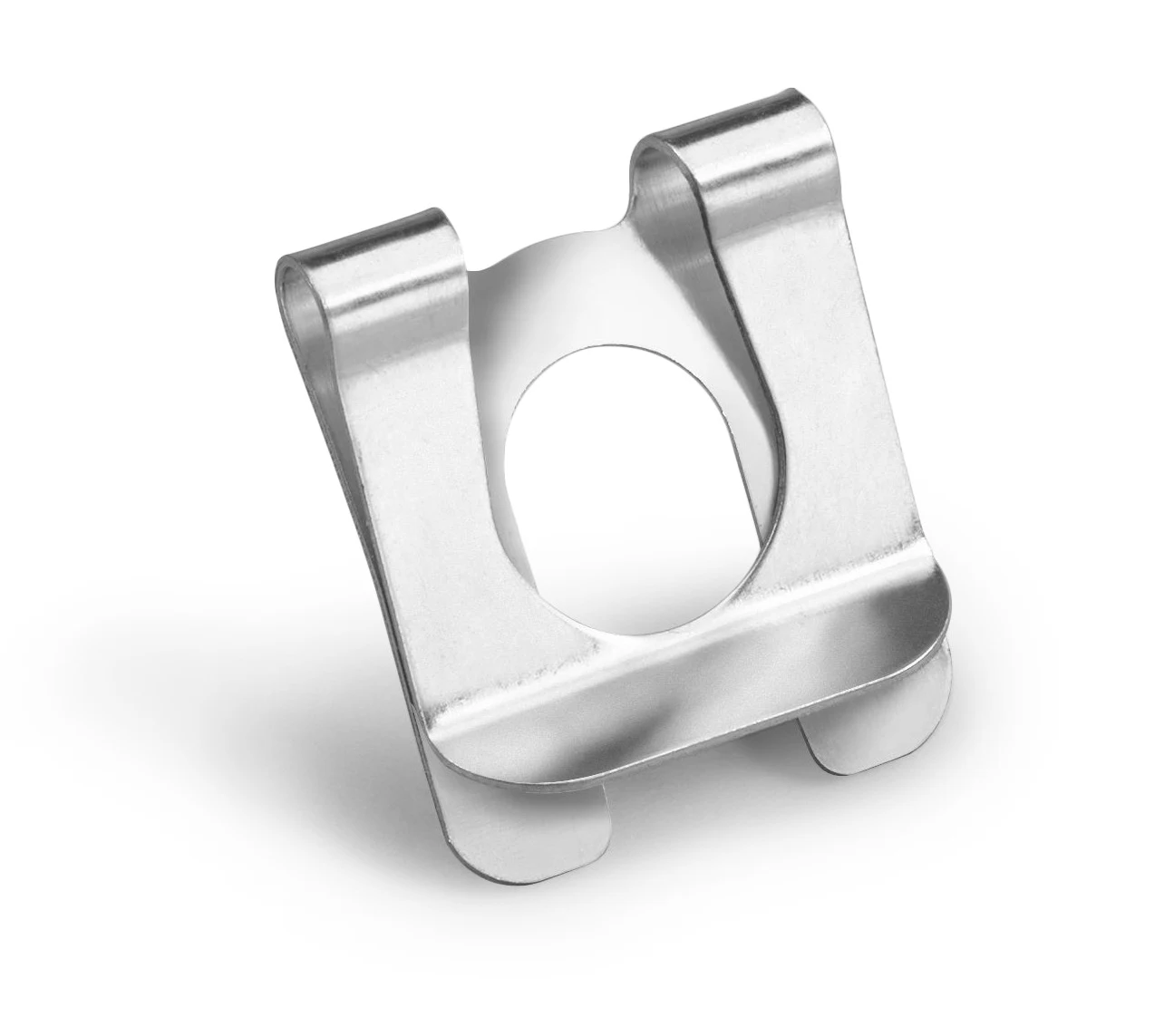

SC-14, Clevis Spring Pins, Clips and Cotters, Clips for 14 mm Clevis Pins Spring Steel Standard Style
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.98 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 14 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.98 |
| 2+ | $4.48 |
| 3+ | $3.65 |
| 4+ | $3.23 |
| 5+ | $2.95 |
| 10+ | $1.85 |
| 25+ | $1.42 |

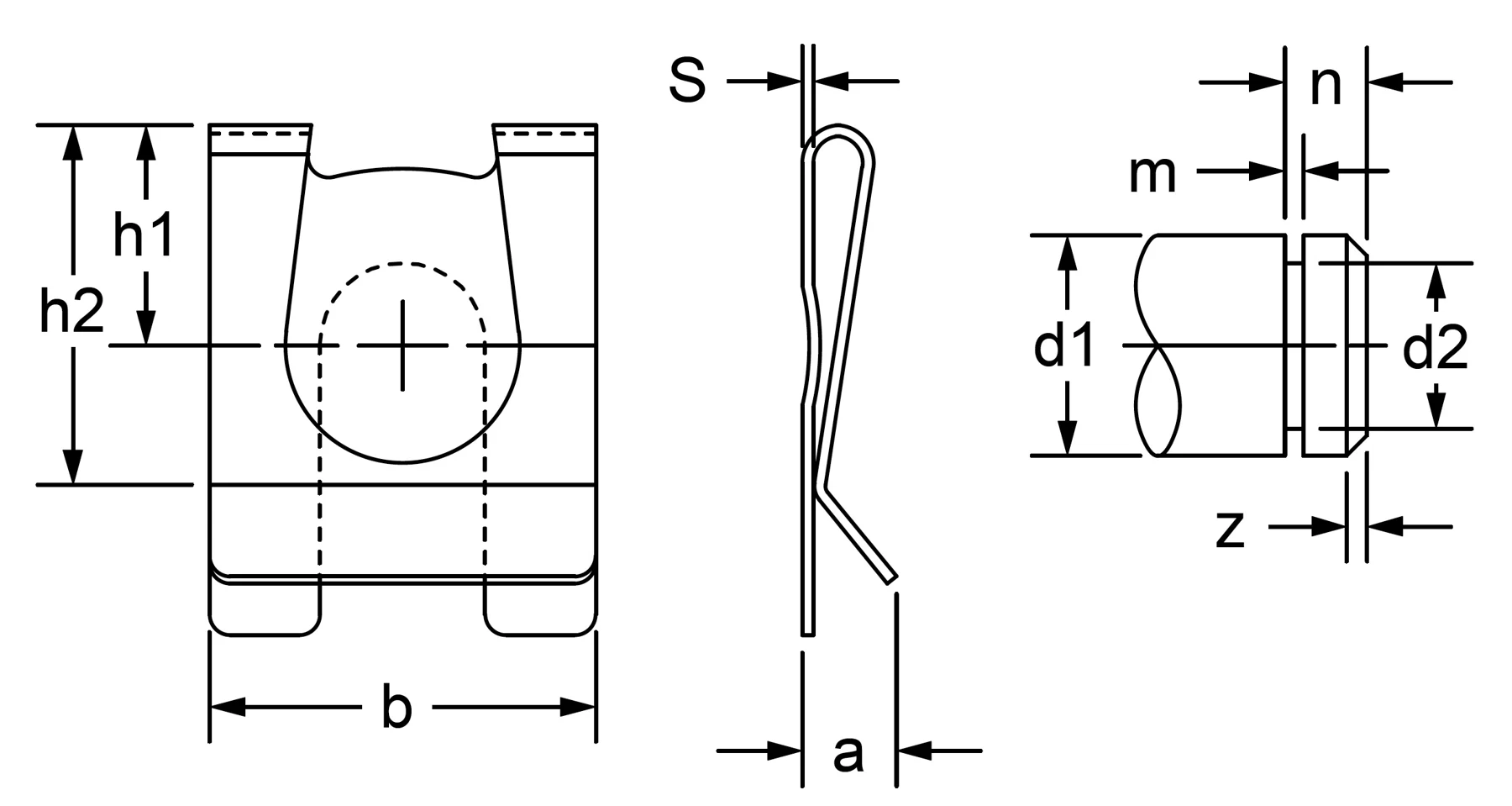

Drawing dimensions
| Nominal Size | 14 |
|---|---|
| b | 25.0 |
| h2 | 30.0 |
| h1 | 13.5 |
| a | 6.0 |
| s | 0.6 |
| d1 | 14 |
| d2 | 10.0 |
| m | 1.25 |
| n | 5.5 |
| z | 1.50 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Use safety clips and bayonet clips on grooved rods or grooved clevis pins instead of the traditional cotter pin.
Construction: Spring steel, plated zinc clear.
