Stud-20L-3.625
Stud-20L-3.625, Threads, Weld On, Studs 1.25-12 LH for Tubular Bushings

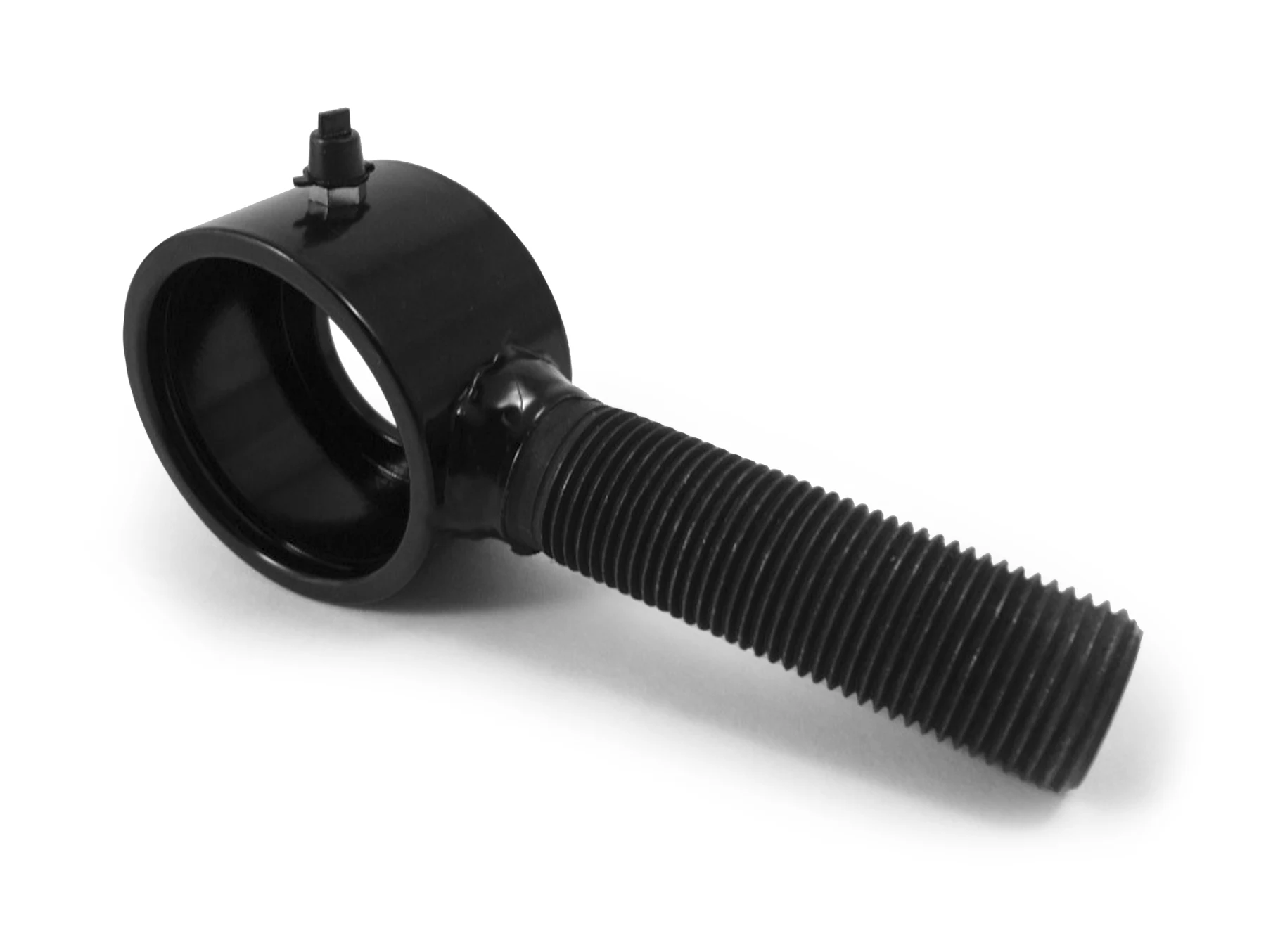

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.72 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1.25-12 LH |
|---|---|
| Style | B |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.72 |
| 2+ | $13.08 |
| 3+ | $12.25 |
| 4+ | $10.41 |
| 5+ | $10.16 |
| 10+ | $7.81 |
| 25+ | $5.81 |
| 50+ | $5.14 |
| 100+ | $4.75 |
| 250+ | $4.01 |
| 500+ | $3.43 |
| 1,000+ | $3.38 |

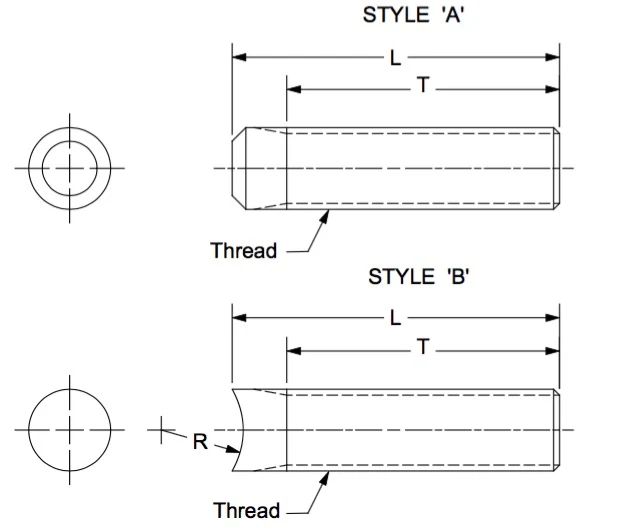

Drawing dimensions
| Threads | 1.25-12 LH |
|---|---|
| Style | B |
| L | 3.625 |
| R | 1.0 |
| T | 3.125 |
Lettered dimensions refer to the drawing for this part.
Product information
Description: Our weld-on studs are useful for building your own tubular bushings.
Material: Heat Treated 4140 Steel, Grade 8 Equivalent
Finish: None. These are not plated
Welding Surface: Straight cut with a 45° chamfered edge
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
