Threads, Weld On · Studs

WTS-8-1.000

WTS-8-1.000, Threads, Weld On, Studs 1/2-20 RH for 1.0 OD Tubes

Product image
WTS-8-1.000 product image

$11.03 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread1

Values without units follow the drawing.

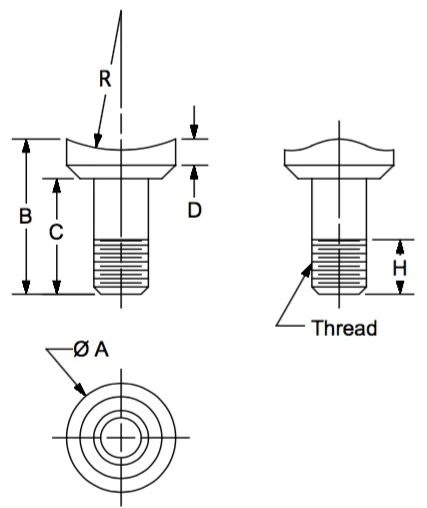

Drawing & dimensions

WTS-8-1.000 dimension drawing
Threads1.000
A1/2-20
B1.00
C1.425
D1.06
H0.240
R0.50
Item envelope L × W × H (in)1 × 1 × 1
Unit weight (lb)0.14

Lettered dimensions refer to the drawing for this part.

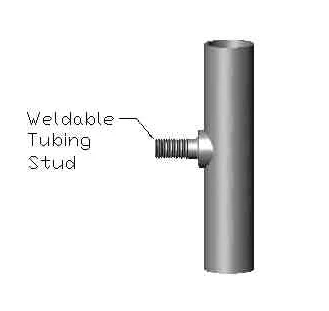

Additional photos
Additional product photo
WTS-8-1.000 additional product photo
Additional product photo
WTS-8-1.000 additional product photo
Additional product photo
WTS-8-1.000 additional product photo

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$11.03
2+$8.43
3+$5.78
4+$5.37
5+$4.72
10+$3.72
30+$2.73
50+$2.07
100+$1.82
200+$1.79
300+$1.67
400+$1.62
600+$1.42

Product information

Description: Our WTS weld-on studs are useful for welding onto tubular fabrications such as go kart frames or race car frames. The stud is coped, making it suitable for welding to a tube at a 90° angle. Material: wrought steel; carbon 0.28 - 0.55 Hardened. Caution: Parts are to only be welded by certified welders - not suitable for all applications.

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
