MCPHydraulic Hose End Fittings · Female ORFS Stem
HSF-FS-SW-06-08
HSF-FS-SW-06-08, Hydraulic Hose End Fittings, Female ORFS Stem Stem, Female Swivel OFS, Steel 13/16-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.18 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 13/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.18 |
| 2+ | $9.56 |
| 3+ | $6.57 |
| 4+ | $6.16 |
| 5+ | $5.43 |
| 10+ | $4.33 |
| 25+ | $3.26 |
| 50+ | $2.44 |
| 100+ | $2.15 |
| 250+ | $2.00 |
| 500+ | $1.69 |
| 1,000+ | $1.44 |

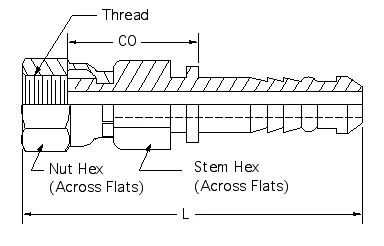

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 13/16-16 |
| Stem Hex | 3/4 |
| Nut Hex | 15/16 |
| L | 1.764 |
| CO | .854 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
