MCPHydraulic Hose End Fittings · Female ORFS Stem
HSF-FS-SW-12-16

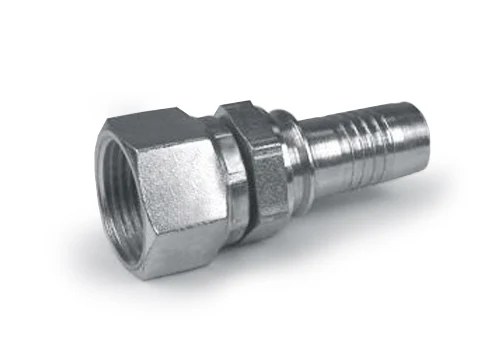

HSF-FS-SW-12-16, Hydraulic Hose End Fittings, Female ORFS Stem Stem, Female Swivel OFS, Steel 1-7/16 - 12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.10 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/4 |
|---|---|
| Thread | 1-7/16 - 12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.10 |
| 2+ | $15.22 |
| 3+ | $12.68 |
| 4+ | $12.26 |
| 5+ | $10.64 |
| 10+ | $9.28 |
| 25+ | $6.92 |
| 50+ | $6.13 |
| 100+ | $5.74 |
| 250+ | $4.83 |
| 500+ | $4.14 |
| 1,000+ | $4.06 |

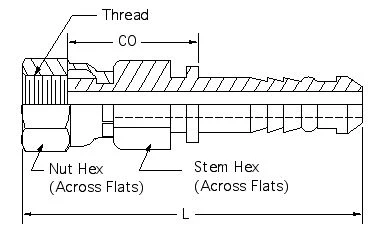

Drawing dimensions
| Hose ID | 3/4 |
|---|---|
| Thread | 1-7/16 - 12 |
| Stem Hex | 1-3/8 |
| Nut Hex | 1-5/8 |
| L | 3.022 |
| CO | 1.167 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic hose end fittings
Compare specifications and drawings to select the right part.
