MCPHydraulic Hose End Fittings · Female ORFS Stem
HSF-FS-SW-T90S-04-06

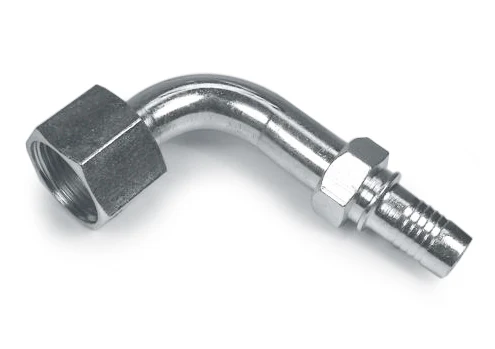

HSF-FS-SW-T90S-04-06, Hydraulic Hose End Fittings, Female ORFS Stem 1/4 11/16-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.19 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/4 |
|---|---|
| Thread | 11/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.19 |
| 2+ | $8.89 |
| 3+ | $8.05 |
| 4+ | $7.01 |
| 5+ | $6.76 |
| 10+ | $4.86 |
| 25+ | $4.18 |
| 50+ | $3.14 |
| 100+ | $2.78 |
| 250+ | $2.52 |
| 500+ | $2.20 |
| 1,000+ | $1.88 |

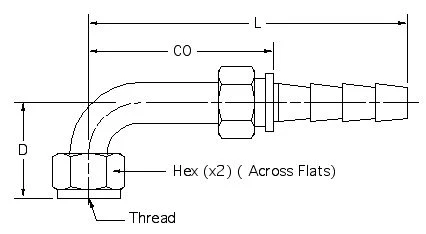

Drawing dimensions
| Hose ID | 1/4 |
|---|---|
| Thread | 11/16-16 |
| Hex | 13/16 |
| D | .900 |
| L | 2.850 |
| CO | 1.985 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
