MCPClevis and Yoke Ends · Male
MMC-12
MMC-12, Clevis and Yoke Ends, Male M12 x 1.75 RH 24mm Pin Holes Zinc Clear (Silver) Plating Turned Housing Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$23.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M12 x 1.75 RH |
|---|---|
| Finish / plating | Zinc Clear |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $23.21 |
| 2+ | $18.94 |
| 3+ | $15.89 |
| 4+ | $13.69 |
| 5+ | $13.44 |
| 10+ | $11.83 |
| 25+ | $7.98 |
| 50+ | $7.88 |
| 100+ | $7.16 |
| 250+ | $5.36 |

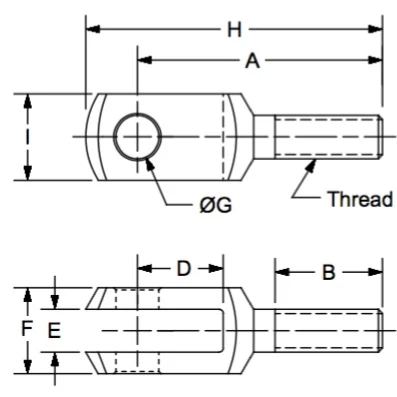

Drawing dimensions
| Threads | M12 x 1.75 RH |
|---|---|
| Plating | Zinc Clear |
| A | 68 |
| B | 35 |
| D | 24 |
| E | 12 |
| F | 24 |
| G | 12 |
| H | 82 |
| I | 24 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: metric clevis ends (also called "yoke ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.
Attaching Hardware: Metric clevis spring pins, cotter pins, safety clips, etc. are available.
Construction: Per DIN 71752.
Cost Savings Tip: cost effective designs should always include the entire tube-nut-yoke assembly, as opposed to purchasing these components separately.
Finish: plated zinc with a zinc clear dichromate treatment.
Material: low carbon steel.
