MCPClevis and Yoke Ends · Male
PMCL-4-3

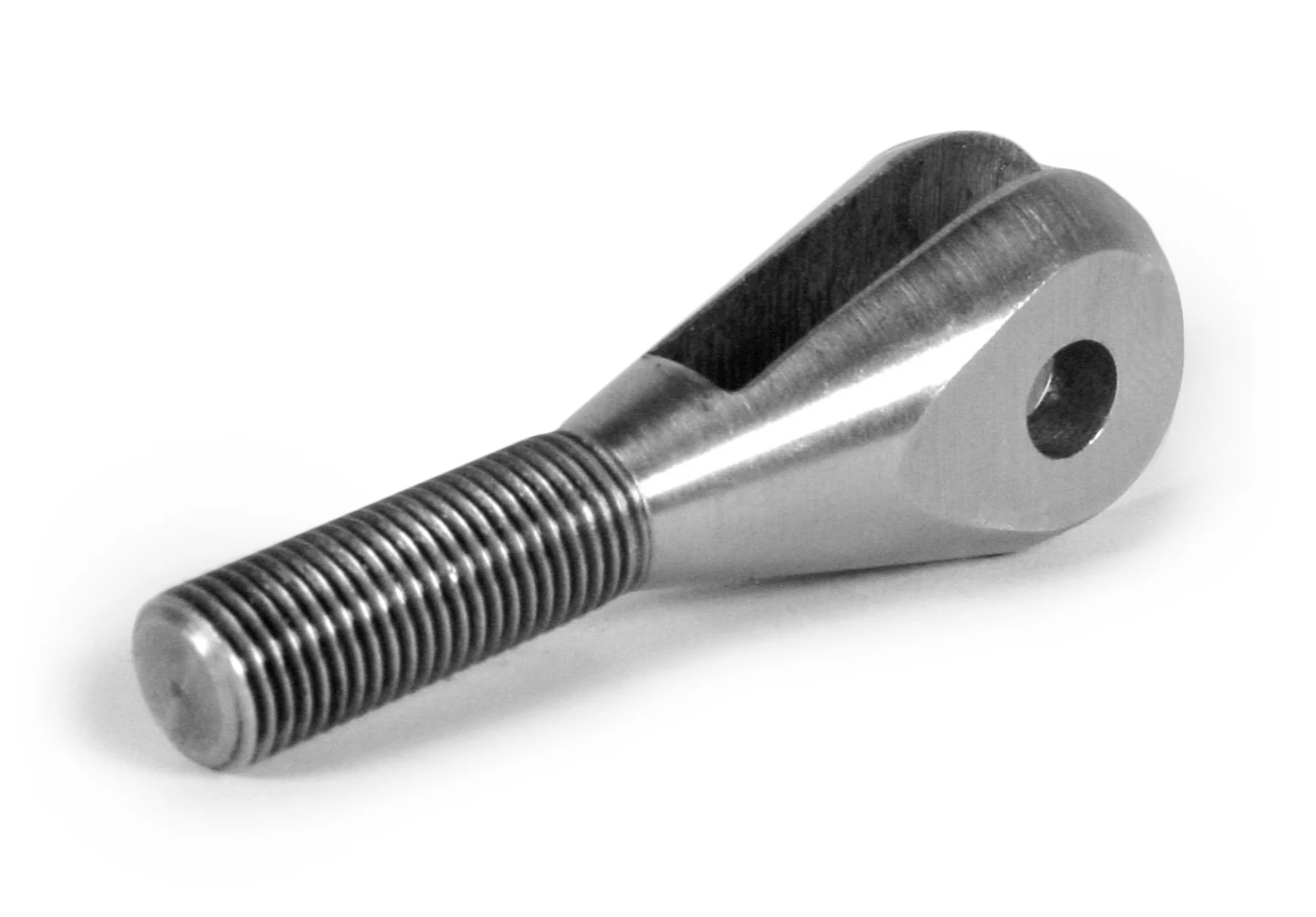

PMCL-4-3, Clevis and Yoke Ends, Male 1/4-28 LH 0.1875 Pin Holes Chrome Moly Turned Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$20.52 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 LH |
|---|---|
| Material | Chrome Moly |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $20.52 |
| 2+ | $16.51 |
| 4+ | $11.85 |
| 8+ | $10.28 |
| 16+ | $7.69 |
| 24+ | $7.59 |
| 32+ | $6.78 |
| 40+ | $6.75 |
| 80+ | $6.31 |
| 120+ | $6.10 |

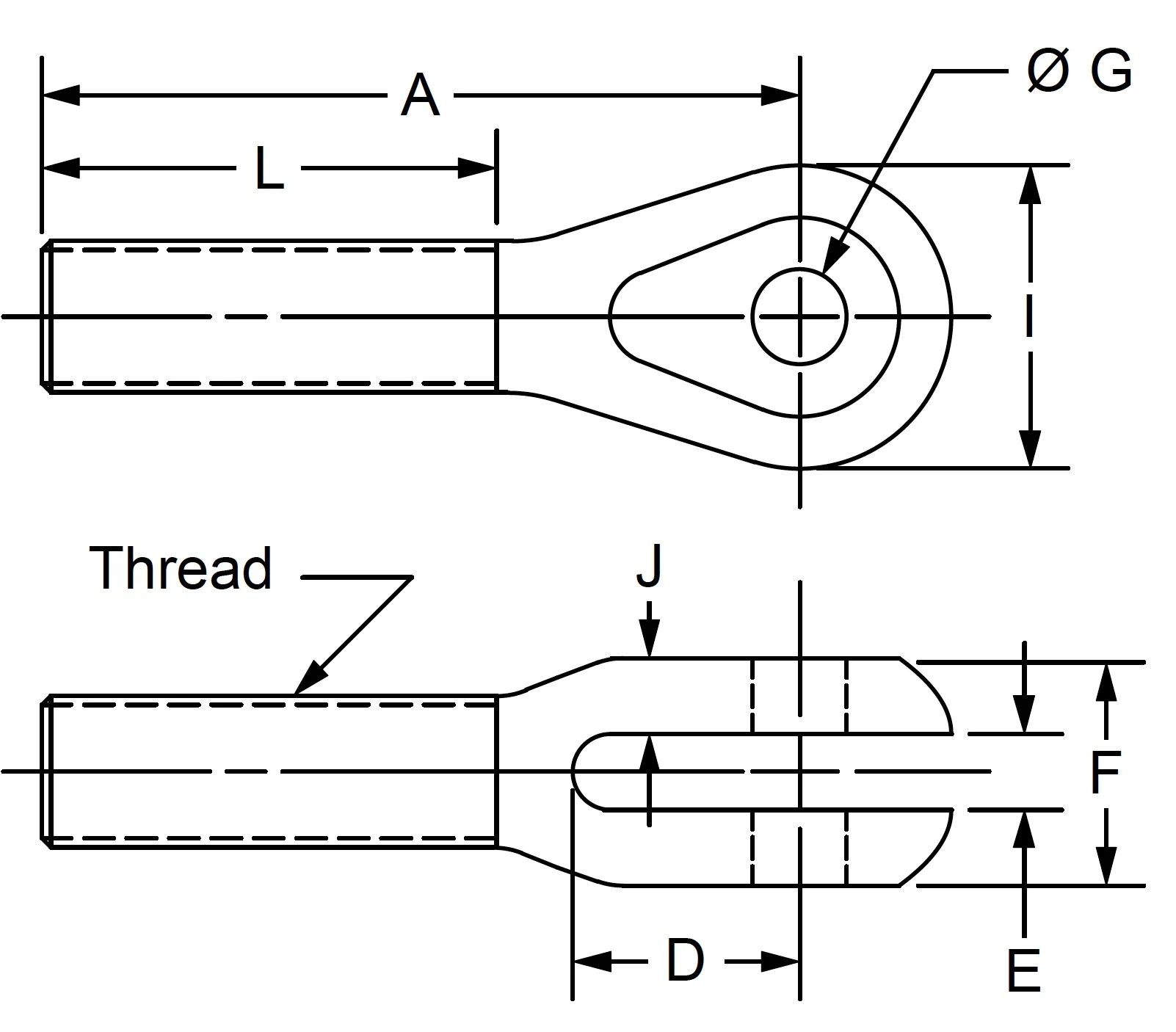

Drawing dimensions
| Threads | 1/4-28 LH |
|---|---|
| Material | Chrome Moly |
| A | 2.250 |
| D | 0.750 |
| E | 0.1250 |
| F | 0.438 |
| G | 0.1875 |
| I | 0.500 |
| L | 1.250 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: chrome moly
