MCPClevis and Yoke Ends · Male
PMCL-6-5
PMCL-6-5, Clevis and Yoke Ends, Male 3/8-24 LH 0.3125 Pin Holes Chrome Moly Turned Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.08 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 LH |
|---|---|
| Material | Chrome Moly |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.08 |
| 2+ | $10.90 |
| 3+ | $9.25 |
| 4+ | $8.83 |
| 5+ | $7.56 |
| 10+ | $6.24 |
| 25+ | $4.20 |
| 50+ | $3.70 |
| 75+ | $3.67 |
| 100+ | $3.65 |
| 125+ | $3.43 |

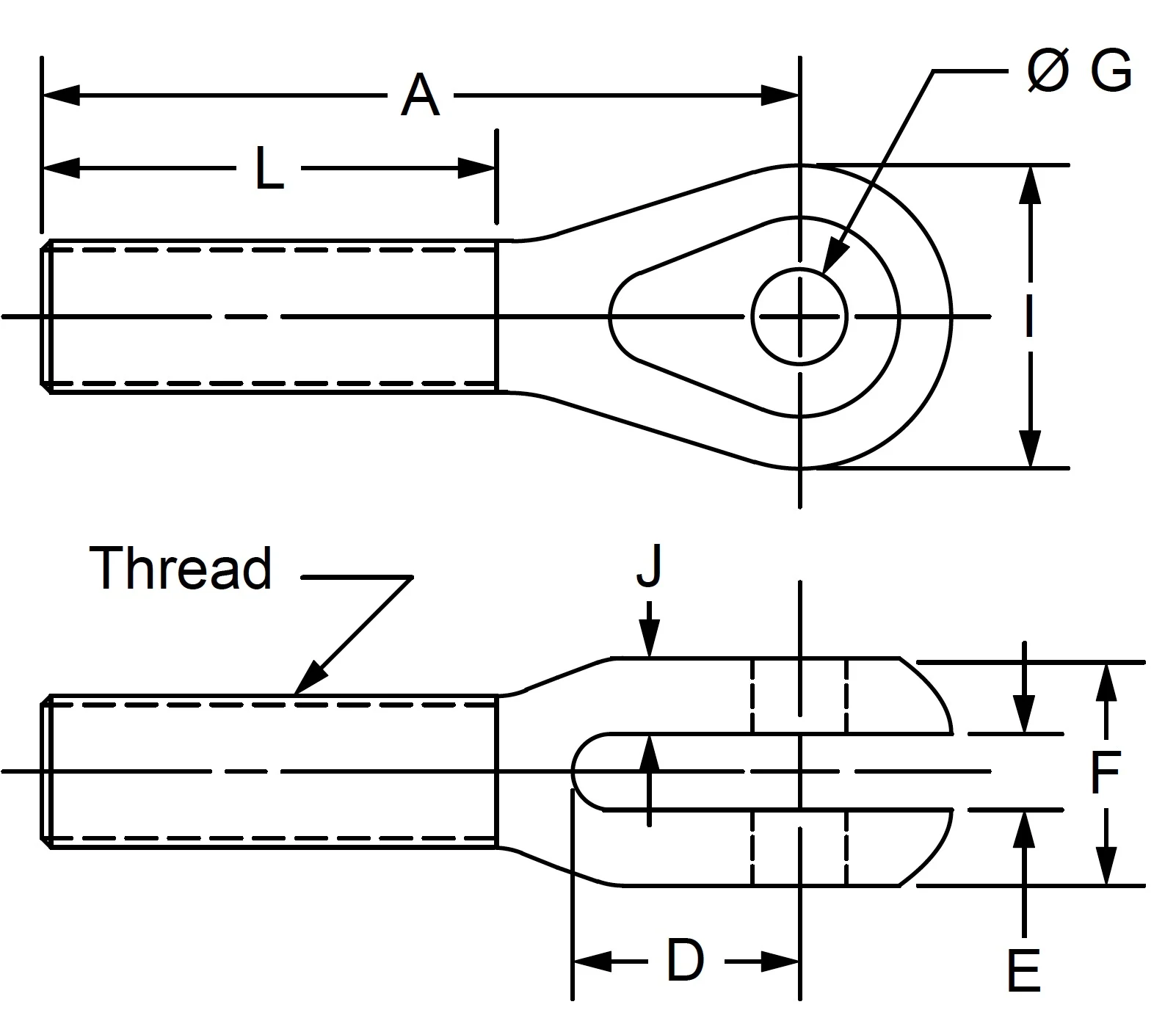

Drawing dimensions
| Threads | 3/8-24 LH |
|---|---|
| Material | Chrome Moly |
| A | 2.250 |
| D | 0.750 |
| E | 0.1880 |
| F | 0.750 |
| G | 0.3125 |
| I | 0.875 |
| L | 1.250 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: chrome moly
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
