MCPClevis and Yoke Ends · Male
PWF-3-148-133

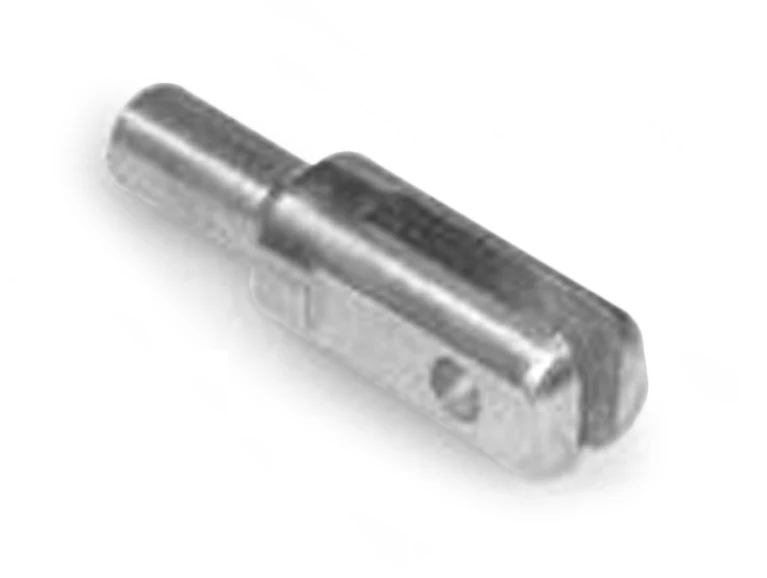

PWF-3-148-133, Clevis and Yoke Ends, Male 0.148 Stem Diameter 0.189 Pin Holes Chrome Moly Weld-In Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.44 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Chrome Moly |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.44 |
| 2+ | $9.81 |
| 3+ | $6.75 |
| 4+ | $6.33 |
| 5+ | $5.59 |
| 10+ | $4.47 |
| 25+ | $3.36 |
| 50+ | $2.52 |
| 100+ | $2.22 |
| 250+ | $2.07 |
| 500+ | $1.75 |

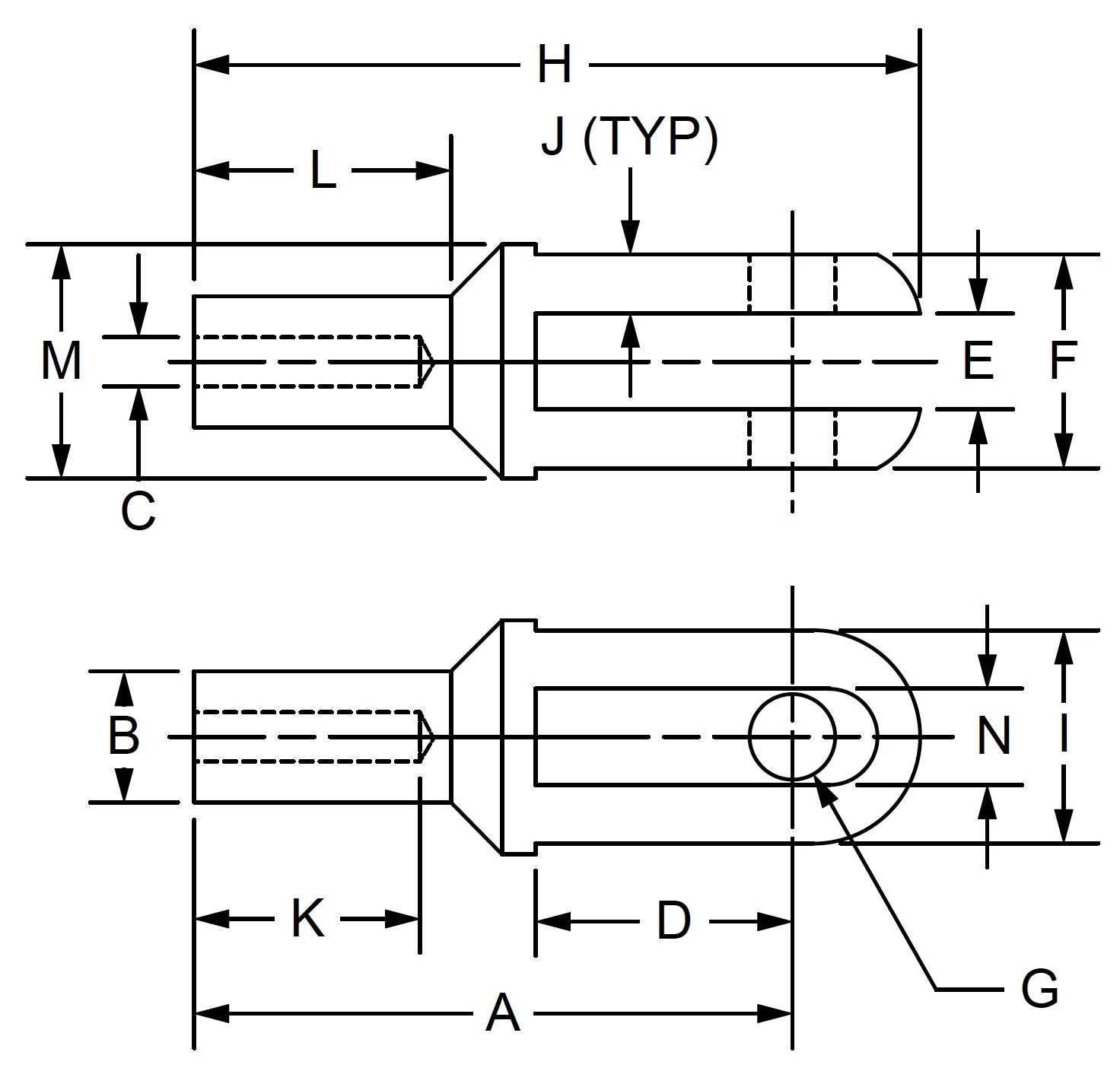

Drawing dimensions
| Material | Chrome Moly |
|---|---|
| A | 0.835 |
| B | 0.148 |
| D | 0.350 |
| E | 0.132 |
| F | 0.285 |
| G | 0.189 |
| H | 1.025 |
| I | 0.325 |
| L | 0.200 |
| M | 0.250 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: chrome moly
Options: check out our extensive selection of clevis pins for your clevis.
Application: our clevises are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
