MCPClevis and Yoke Ends · Male
TMY-5
TMY-5, Clevis and Yoke Ends, Male 5/16-24 RH 0.313 Pin Holes Zinc Yellow Plating Forged Construction

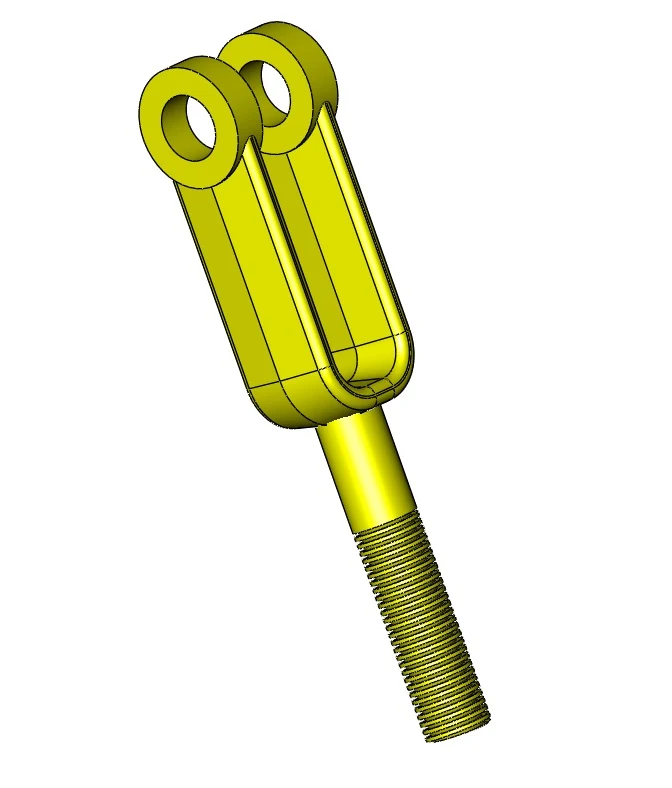

3D CAD preview

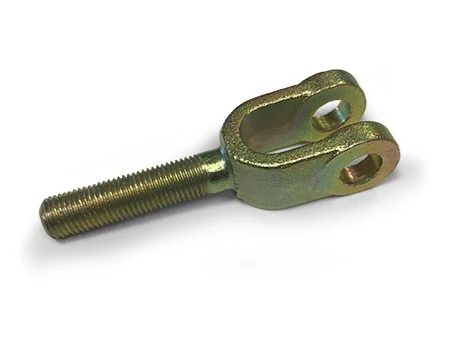

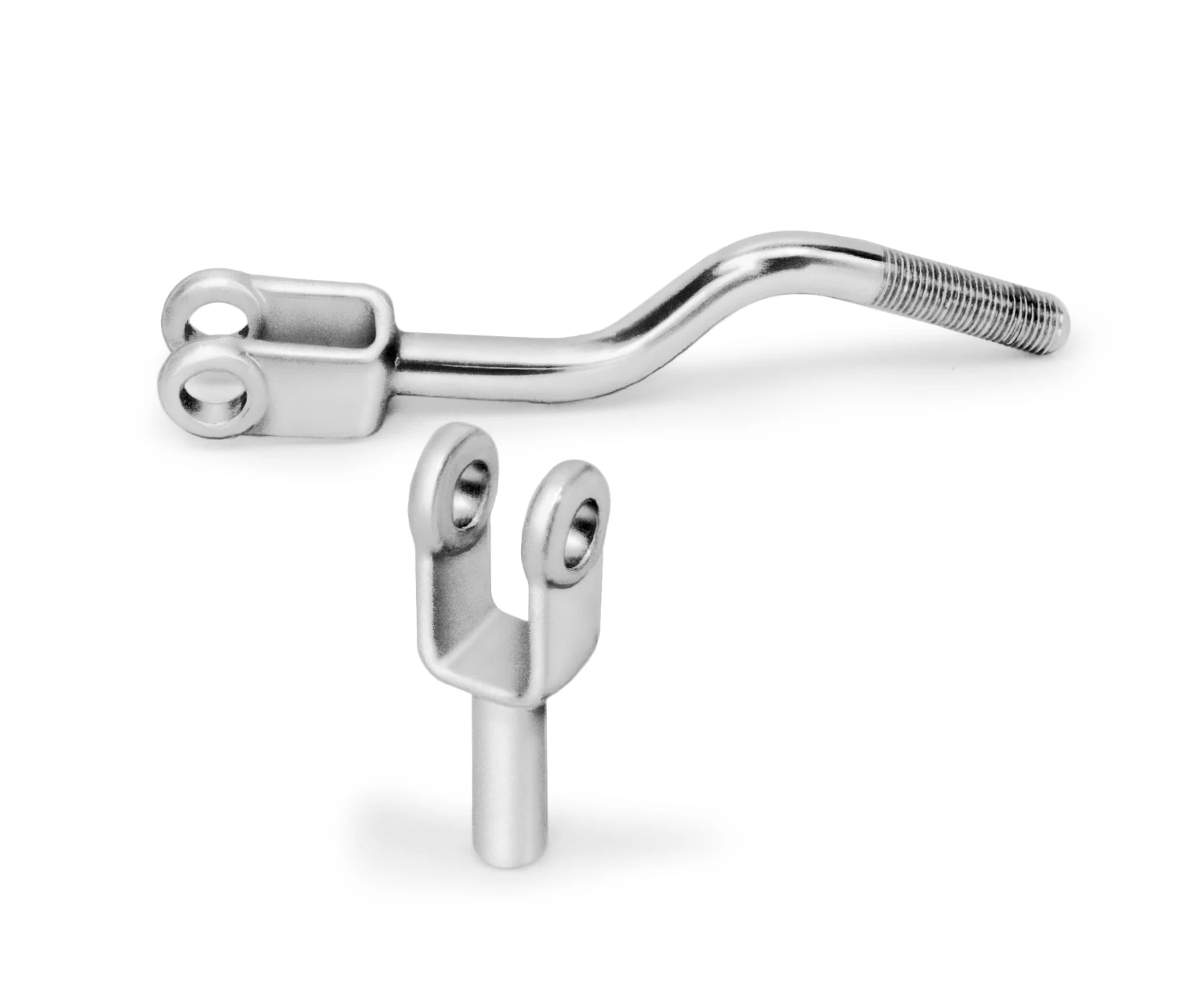

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.92 per piece at 100+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 RH |
|---|---|
| Finish / plating | Zinc Yellow |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 100+ | $19.92 |
| 250+ | $19.56 |
| 500+ | $19.55 |
| 700+ | $19.55 |
Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| XY | 1.250 |
| XX | 2.625 |
| A | na |
| B | 0.313 |
| D | 0.750 |
| E | 0.344 |
| F | 0.750 |
| G | 0.313 |
| I | 0.594 |
| Plating | Zinc Yellow |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: Male Yoke Ends are forged or cast from low carbon steel, and are then machined to the above specifications.Standard designs are plated zinc with yellow dichromate.
Left Hand Threads: designate by an "L" as in TMYL-6.
Specials: Special housing sizes and configurations are available in any volume. Different rod diameters and lengths can be welded to the parent forging to achieve any length. Pin hole sizes can be modified easily and cost effectively. Note: avoid changing the following dimensions: D, E, F and I.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More clevis and yoke ends
Compare specifications and drawings to select the right part.
