MCPBellcranks · Bulk
FBC-12-6
FBC-12-6, Bellcranks, Bulk 3/4 Bore Low Carbon Steel, Plated Zinc Yellow Welded Style Bronze Bushing

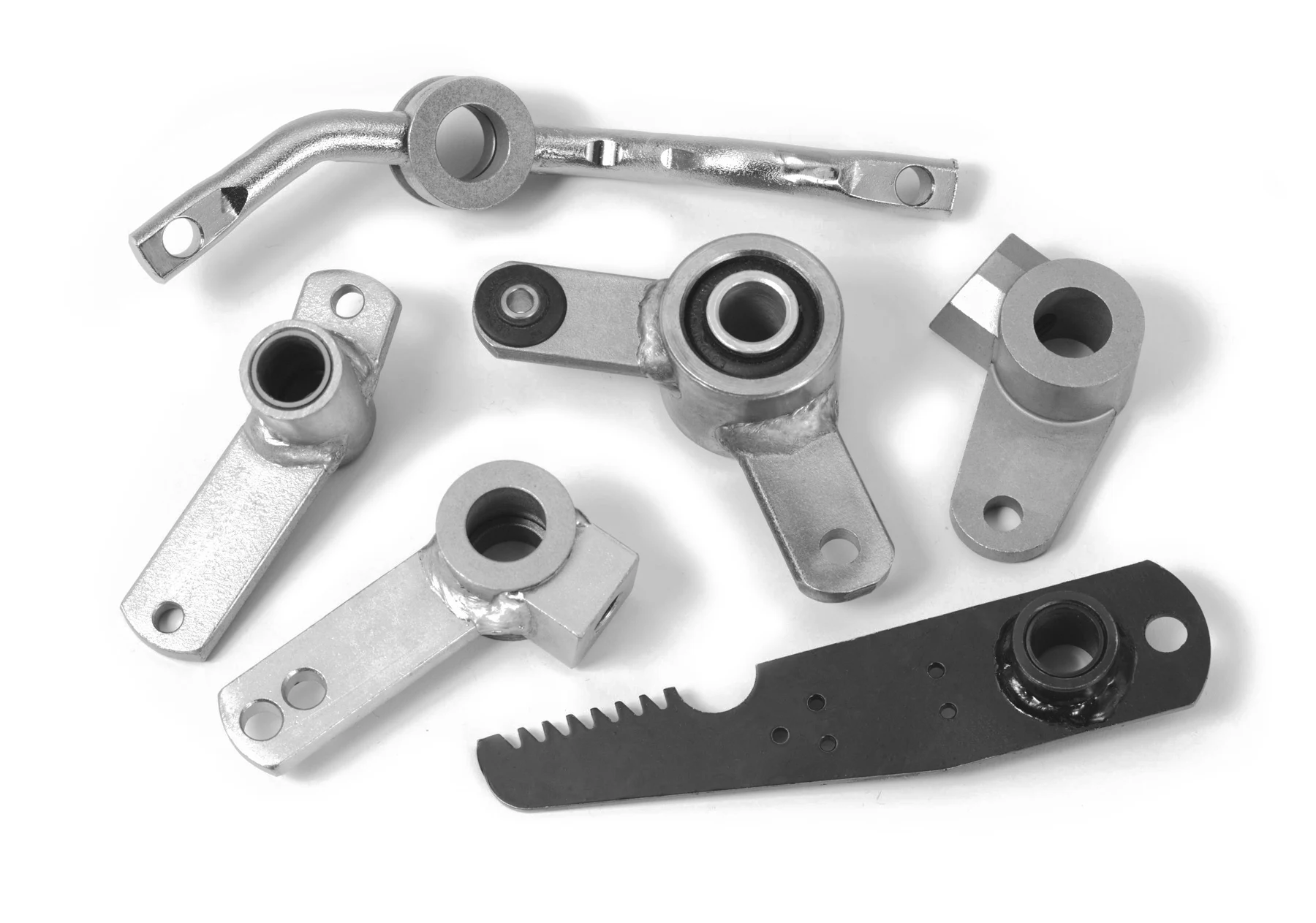

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$62.85 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 3/4 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $62.85 |
| 2+ | $55.19 |
| 3+ | $41.96 |
| 4+ | $41.54 |
| 5+ | $37.16 |
| 10+ | $36.66 |
| 15+ | $34.44 |
| 20+ | $33.31 |

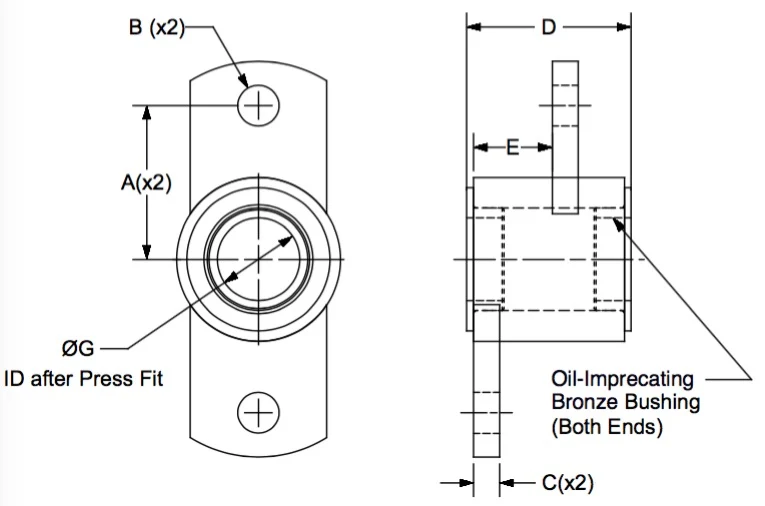

Drawing dimensions
| Nominal Size | 3/4 |
|---|---|
| A | 35.7 mm |
| B | 9.52 mm |
| C | 6 mm |
| D | 38.2 mm |
| E | 18.25 mm |
| G | 19.14 mm |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: bronze
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc clear
Special Feature: Multiple attachment locations and sizes creates highly universal bellcrank design.
Special Note: -345 sizes shown within illustration. -456 sizes will have fewer (-2) B1 and B2 hole locations.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
