MCA-6
MCA-6, Bellcranks, Bulk 3/8 Bore Low Carbon Steel, Plated Zinc Yellow Crank Arm Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$24.77 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $24.77 |
| 2+ | $20.34 |
| 3+ | $17.10 |
| 4+ | $14.75 |
| 5+ | $14.50 |
| 10+ | $12.80 |
| 20+ | $9.66 |
| 30+ | $8.61 |
| 50+ | $8.54 |
| 100+ | $7.77 |

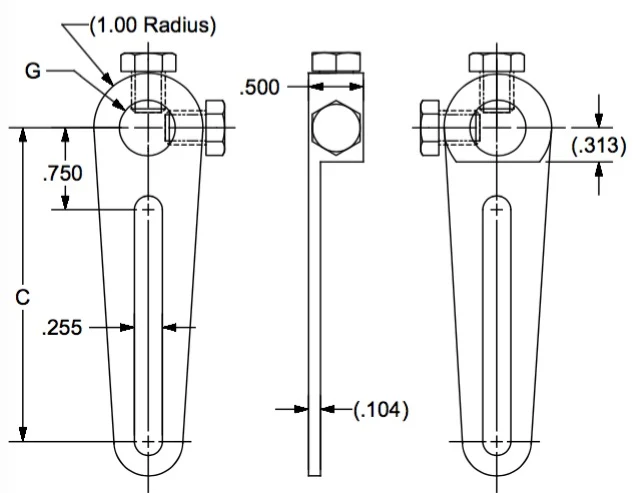

Drawing dimensions
| C | 2.875 |
|---|---|
| G | 0.387 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Lever Arms are used to transfer motion from a control rod to a lever point. The housing has two set screws to fit a variety of sizes and shapes. The arm itself has a long slot to accommodate a variety of linkage designs.
Construction: Low carbon steel, plated zinc yellow.
