MCA-8
MCA-8, Bellcranks, Bulk 1/2 Bore Low Carbon Steel, Plated Zinc Yellow Crank Arm Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.41 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.41 |
| 2+ | $8.25 |
| 3+ | $7.41 |
| 4+ | $6.44 |
| 5+ | $6.19 |
| 10+ | $4.99 |
| 20+ | $3.83 |
| 40+ | $2.86 |
| 80+ | $2.52 |
| 120+ | $2.50 |
| 160+ | $2.49 |

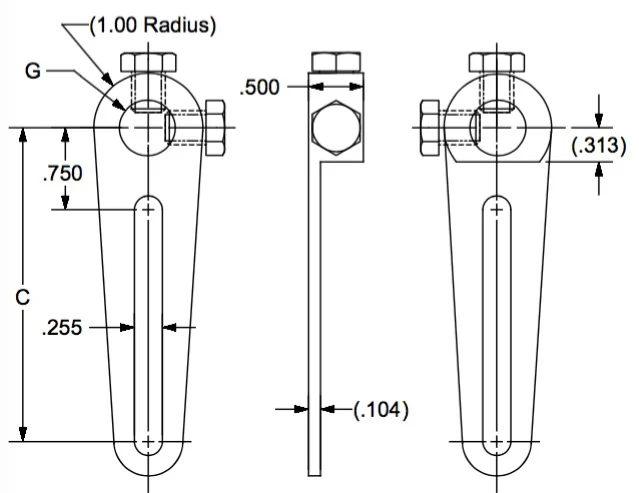

Drawing dimensions
| C | 2.875 |
|---|---|
| G | 0.512 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Lever Arms are used to transfer motion from a control rod to a lever point. The housing has two set screws to fit a variety of sizes and shapes. The arm itself has a long slot to accommodate a variety of linkage designs.
Construction: Low carbon steel, plated zinc yellow.
