MCPBellcranks · Bulk
FBC-12-8
FBC-12-8, Bellcranks, Bulk 3/4 Bore Low Carbon Steel, Plated Zinc Yellow Welded Style Bronze Bushing

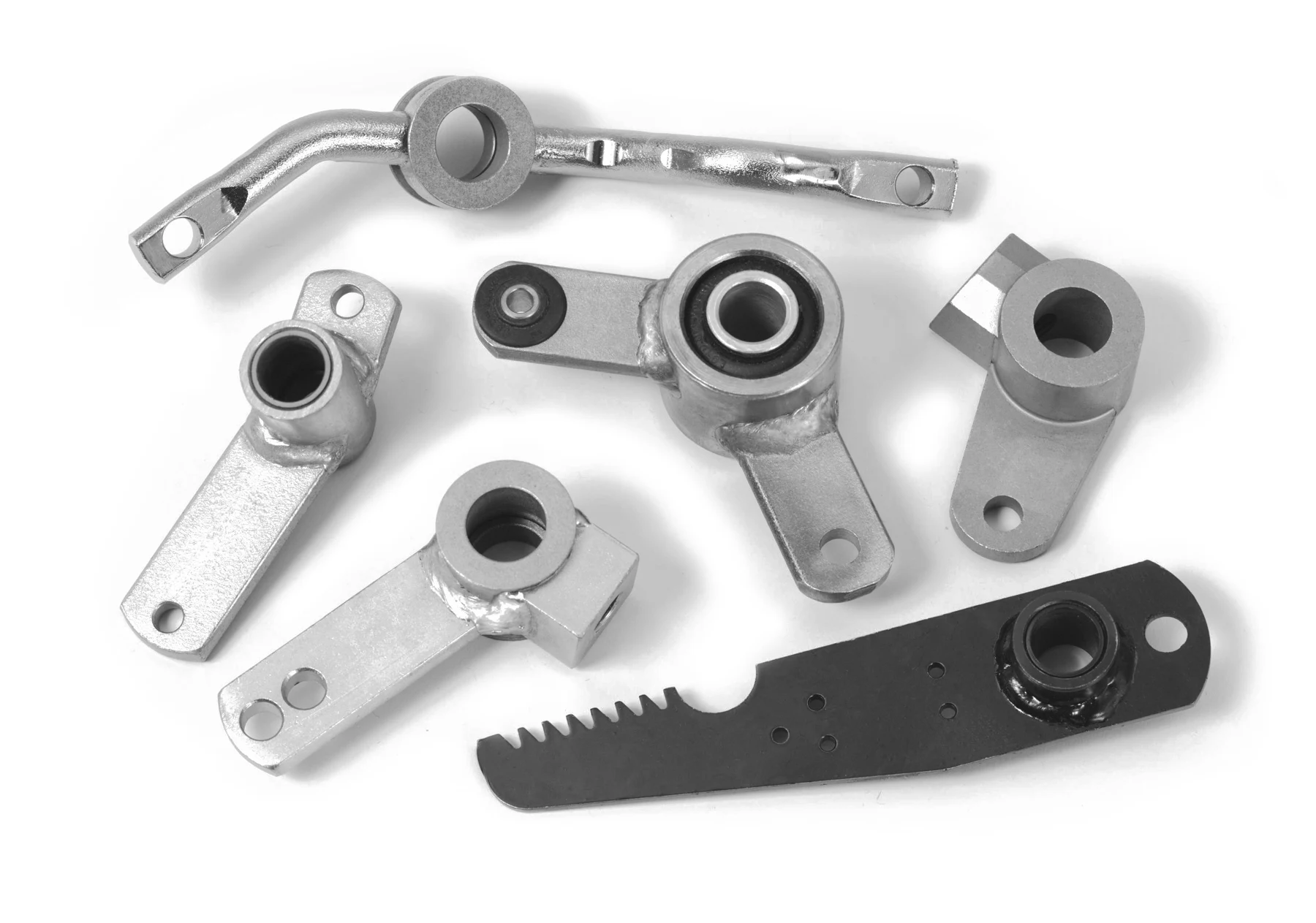

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$28.93 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 3/4 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $28.93 |
| 2+ | $23.20 |
| 3+ | $19.78 |
| 4+ | $17.75 |
| 5+ | $17.50 |
| 10+ | $13.12 |
| 25+ | $11.53 |
| 50+ | $10.78 |
| 75+ | $10.43 |
| 100+ | $9.12 |
| 250+ | $7.77 |

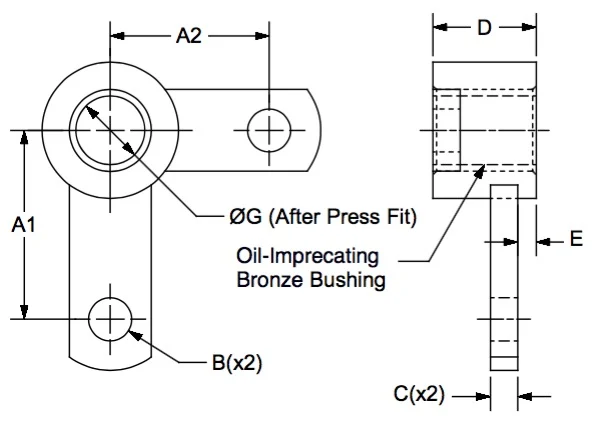

Drawing dimensions
| Nominal Size | 3/4 |
|---|---|
| A1 | 44 mm |
| A2 | 37 mm |
| B | 9.96 mm |
| C | 6 mm |
| D | 25.6 mm |
| E | 4.3 mm |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: bronze
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc clear
Special Feature: Multiple attachment locations and sizes creates highly universal bellcrank design.
Special Note: -345 sizes shown within illustration. -456 sizes will have fewer (-2) B1 and B2 hole locations.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
