MCPBellcranks · Bulk
MBC-8-345
MBC-8-345, Bellcranks, Bulk 1/2 Bore Low Carbon Steel, Plated Zinc Yellow Universal Style

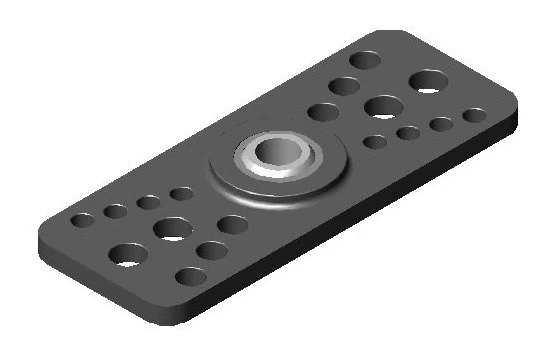

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$34.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $34.79 |
| 2+ | $25.05 |
| 3+ | $24.22 |
| 4+ | $21.79 |
| 5+ | $21.54 |
| 10+ | $16.21 |
| 25+ | $14.30 |
| 50+ | $13.00 |
| 75+ | $11.36 |
| 100+ | $11.34 |

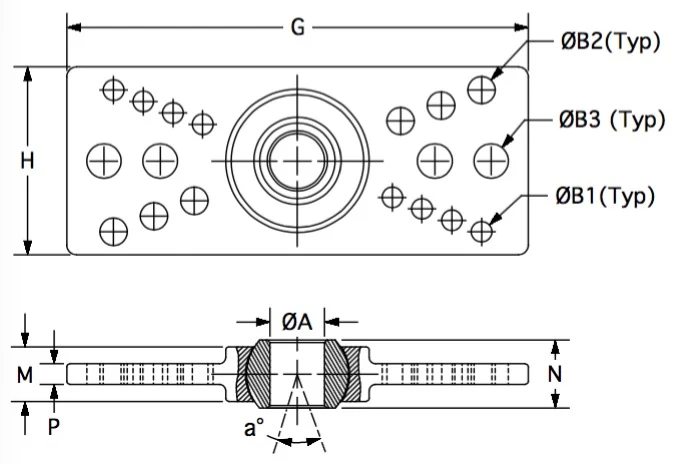

Drawing dimensions
| A | 0.501 |
|---|---|
| a° | 12 |
| B1 | 0.189 |
| B2 | 0.251 |
| B3 | 0.314 |
| G | 4.225 |
| H | 1.715 |
| M | 0.500 |
| N | 0.625 |
| P | 0.188 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: bronze
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc clear
Special Feature: Multiple attachment locations and sizes creates highly universal bellcrank design.
Special Note: -345 sizes shown within illustration. -456 sizes will have fewer (-2) B1 and B2 hole locations.
